Product Introduction

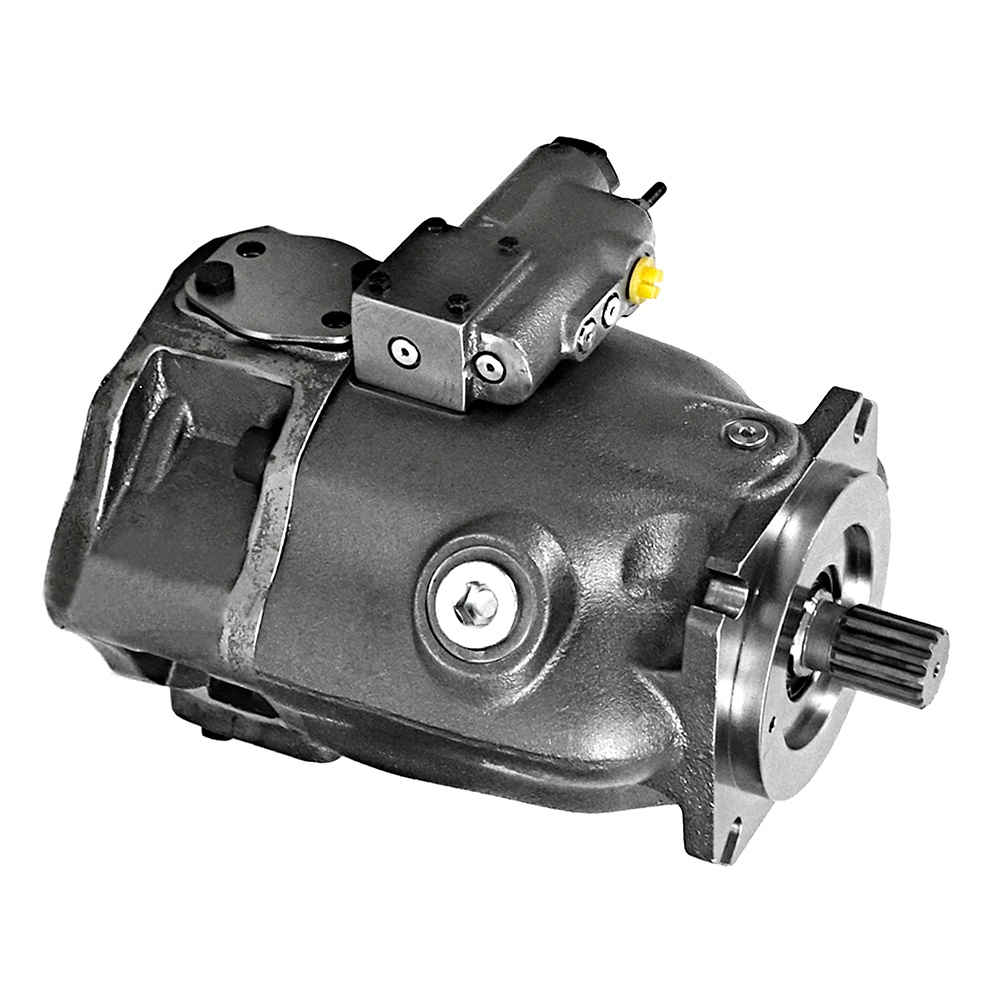

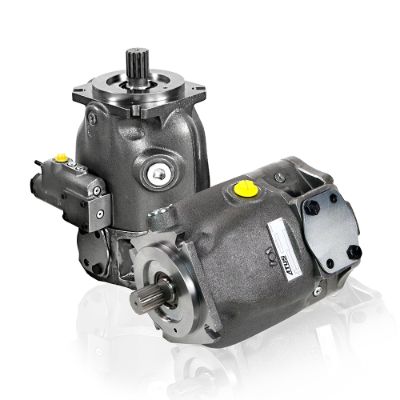

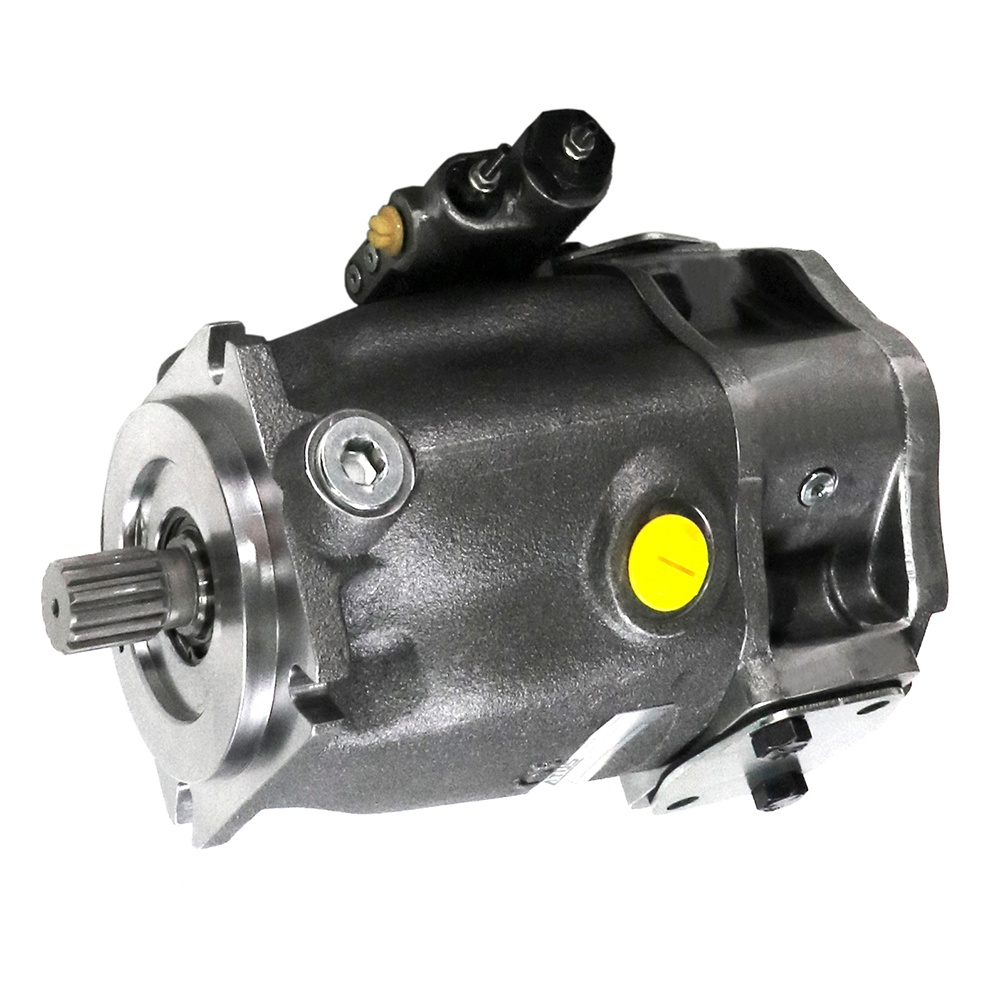

ATUS PD Series variable axial piston pump is engineered for open-circuit hydraulic systems. It adopts rugged cradle-bearing swashplate structure, available in multiple displacements from 18cc up to 140cc. Rated pressure reaches 280 bar, supporting full power through-drive. Widely used for mobile machinery and industrial hydraulic equipment, it serves as a direct replacement for original parts.
Technical Specifications:
Size NG: 18 / 28 / 45 / 60 / 75 / 100 / 140
Displacement(cm³): 18 / 28 / 45 / 60 / 75 / 100 / 140
Speed(rpm): 1800
Flow (L/min) : 32.4 / 50.4 / 81 / 108 / 135 / 180 / 252
N.W.(KG): 14.2 / 18.1 / 24 / 30 / 31 / 53 / 67
Rated Pressure: 280 bar
Reak Pressure: 320 bar
Application Field: Hydraulic systems used in industrial equipment and engineering equipment
Features
Heavy-duty cradle bearing design for stable high-pressure continuous operation
Variable swashplate, adjustable output flow according to system demand
Full power through-drive design for multi-pump combination installation
Optional torque limiter to protect hydraulic system from overload damage
Wide working temperature range, strong adaptability for harsh working conditions
Two shaft options: keyed shaft & spline shaft for diverse connection needs
End inlet / side inlet port optional, flexible pipeline layout
Horizontal or vertical shaft-up mounting available
Hydrostatic balanced swash plate saddle, low friction and long service life
Strict factory pressure test, consistent performance for mass replacement
Advantages
High power density, compact pump body saves installation space
Low noise and low vibration during continuous operation
Multiple control types: pressure compensator, load sensing, remote pressure control
Standard mounting dimensions for easy drop-in replacement
High-strength cast iron housing, anti-impact for construction & agriculture machines
Complete displacement range to match different flow requirements
Easy maintenance, replaceable internal spare parts
12-month warranty with reliable after-sales technical support
Installation Method
Mounting form: SAE standard flange installation, compatible with standard engine/gearbox connection interfaces
Mounting orientation: Support horizontal installation and vertical shaft-up installation; shaft-down installation requires customized case drain design
Port layout: Side inlet/outlet or end inlet/outlet optional, case drain port must be placed at the lowest position of pump body
Shaft connection: Use flexible coupling for prime mover connection; avoid radial and axial overloading on pump shaft
Through-drive version: Multiple pumps can be stacked and mounted in series for combined hydraulic power supply
Installation note: Keep proper oil level of case drain line, prevent air suction and cavitation
Application Range
Construction machinery, agricultural equipment, material handling, road machinery, industrial hydraulic stations, waste recycling machines and other medium & high pressure open circuit hydraulic systems.
Notes & Service
Please confirm model type (PD), displacement, control type, mounting style and rotation direction before ordering.
ATUS PD hydraulic pumps support modular assembly and field maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
