Product Introduction

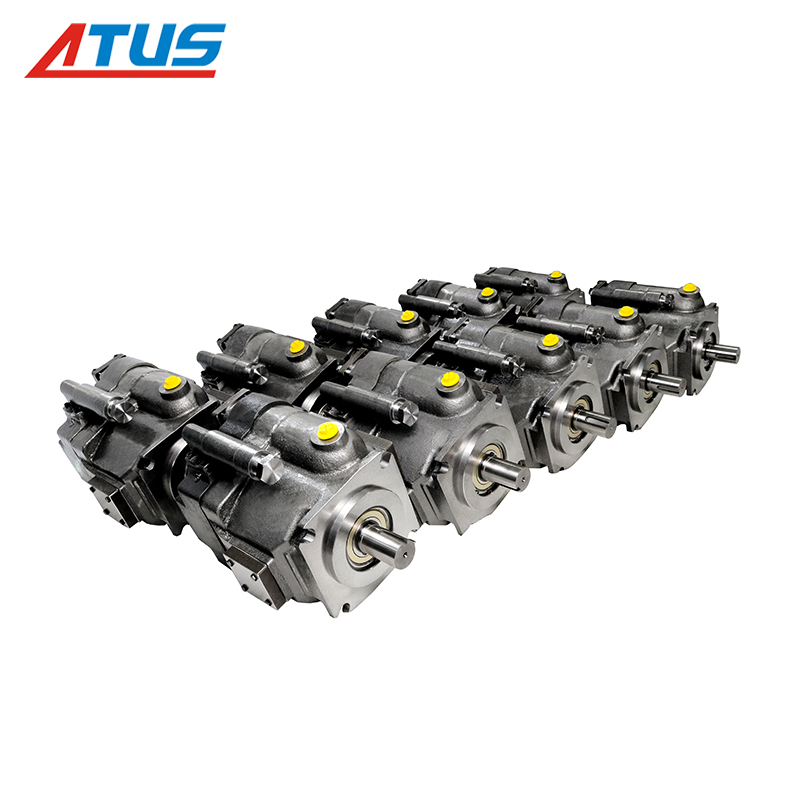

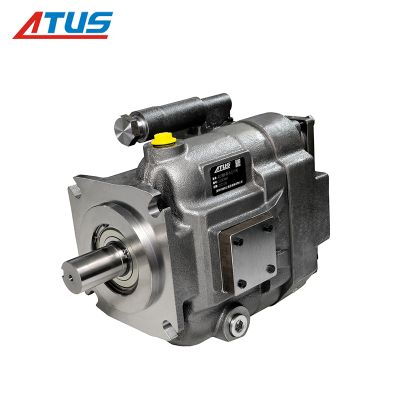

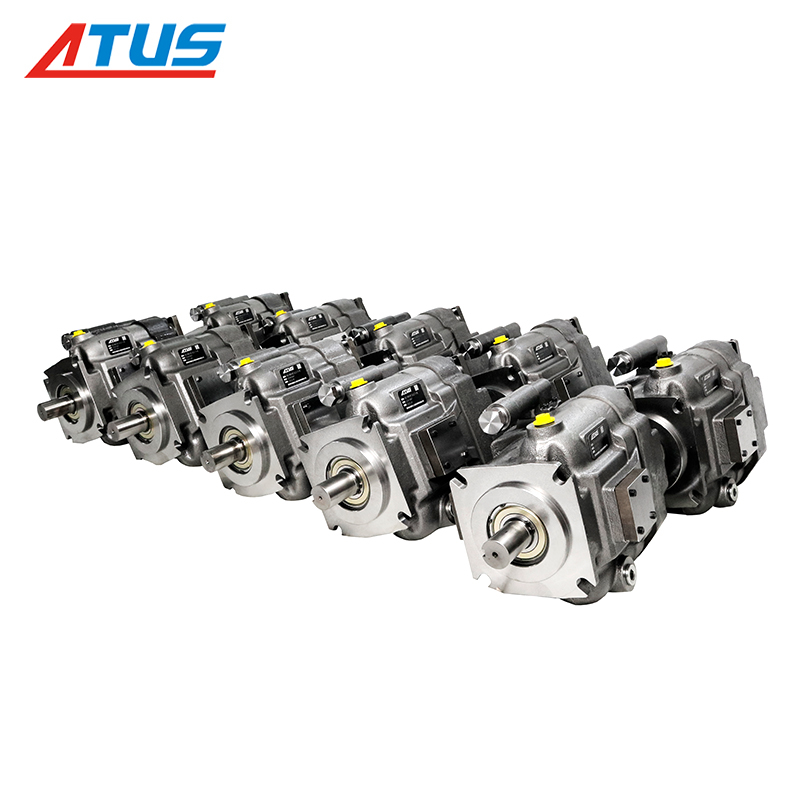

ATUS PFB/PVB Series swash plate axial piston pumps cover fixed displacement PFB and variable displacement PVB models, designed for open-circuit industrial hydraulic systems. PFB is fixed displacement pump with stable constant flow output; PVB variable pump can adjust flow automatically to match system demand. Displacement options from 10.5cc to 197.5cc, continuous working pressure up to 210 bar. Widely recognized for high efficiency, stable pressure performance and interchangeable structure, ideal direct replacement for original hydraulic pumps for industrial equipment.
Technical Specifications:
Size NG: 5 / 6 / 10 / 15 / 20 / 29 / 45 / 90
Displacement(cm³): 10.5 / 13.8 / 21.1 / 33 / 42.8 / 61.6 / 94.5 / 197.5
Speed(rpm): 1800
Flow (L/min): 18.9 / 24.84 / 37.98 / 59.4 / 77.04 / 110.88 / 170.1 / 355.5
N.W.(KG): 8 / 15 / 26 / 96
Rated Pressure: 210 / 140 bar
Reak Pressure: 280 / 200 bar
Application Field: Used in engineering machinery, oil fields, ships and other machinery fields
Features
Two types available: PFB fixed displacement pump and PVB variable displacement pump
Swash plate axial piston construction, supports high pressure continuous operation
Multiple control options for PVB: pressure compensator, remote pressure control, load sensing, handwheel & lever control
Wide speed range, max speed up to 3600 rpm
High volumetric & mechanical efficiency, reduce heat generation
Compact pump body, optional foot mounting or flange mounting structure
Optimized internal friction pair, long service life
Multiple seal configurations, compatible with mineral oil and common hydraulic fluids
Standard SAE/ISO port connection with O-ring sealing, less leakage risk
Complete interchangeable spare parts, easy maintenance and repair
Advantages
Drop-in replacement design, standard mounting dimensions, minimal modification during retrofit
PVB variable pump automatically adjusts flow to match load demand, saving energy and reducing operating cost
PFB fixed pump delivers stable constant flow, suitable for constant-duty industrial cycles
Robust bearing system, withstands pressure fluctuation and intermittent shock loads
Low flow pulsation, reduces vibration and protects valves, pipelines and actuators
Modular control assembly, flexible to switch control types according to working requirements
Wide displacement range, one series covers multiple flow requirements for different machines
Simple internal structure, easy on-site inspection and component replacement
100% pressure tested before delivery, consistent batch quality and reliable performance
ATUS global technical support, fast spare parts supply for after-market maintenance
Installation Method
Dual mounting options: SAE standard flange mounting, optional foot bracket mounting for selected models.

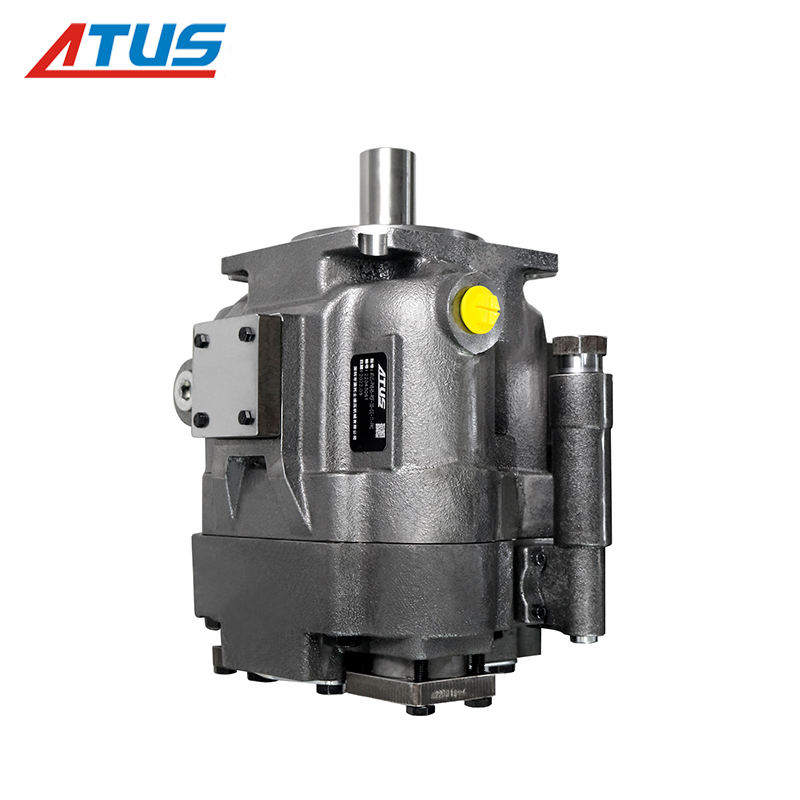

Preferred installation: horizontal mounting to maintain proper oil level inside pump housing. Shaft-up vertical mounting is available with specified drain port configuration.
Drive connection: splined shaft or straight shaft, connect via flexible coupling.
Oil ports: side or rear port layout, inch thread or metric thread with O-ring seal.
Drain line requirement: full size drain pipe routed directly to tank, housing pressure limited below 0.35~0.7 bar.
Pre-commissioning: fill oil into pump housing and bleed air before startup to avoid cavitation damage.
Application Range
Injection molding machines, metal forming equipment, mining machinery, hydraulic presses, conveyor systems, oil & gas auxiliary units, test benches and general heavy-duty industrial hydraulic systems.
Notes & Service
Please confirm model type (PFB / PVB), displacement, control type, mounting style and rotation direction before ordering.
ATUS PFB/PVB hydraulic pumps support modular assembly and field maintenance.
We provide professional technical support and reliable after-sales service.
