Product Introduction

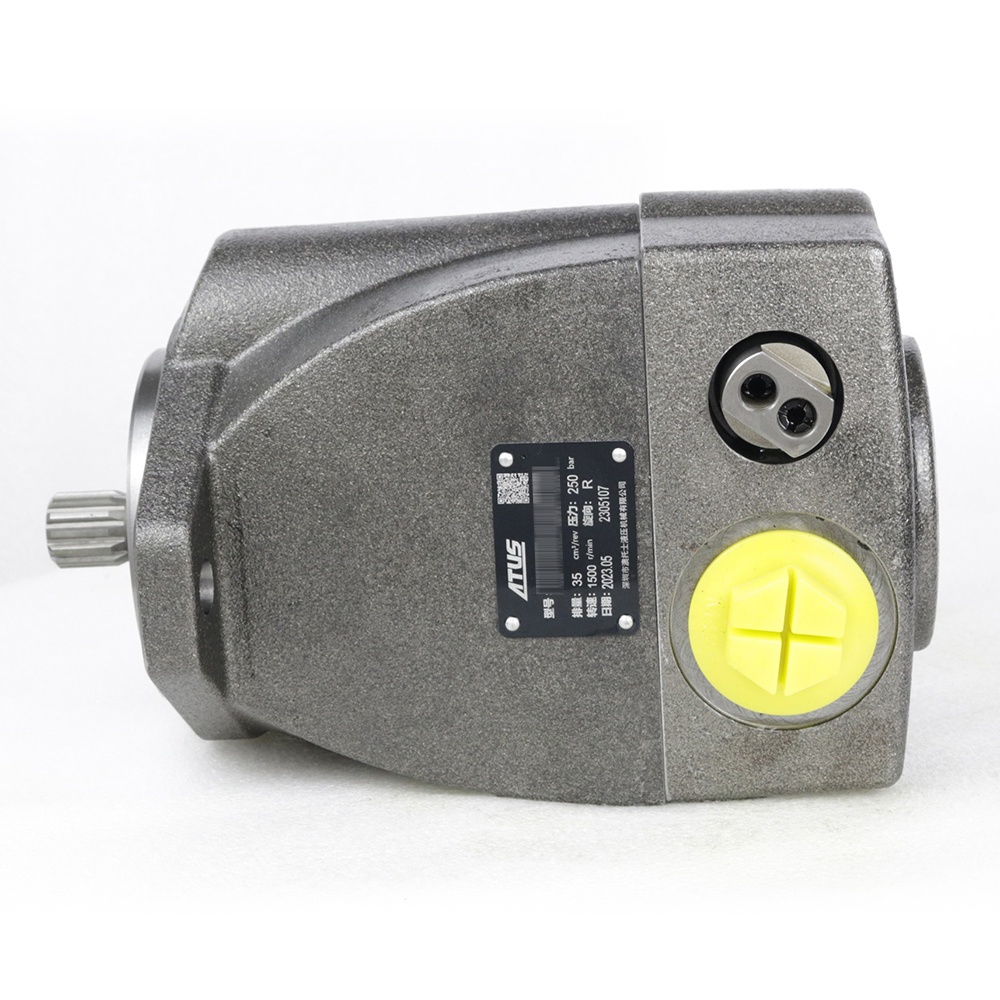

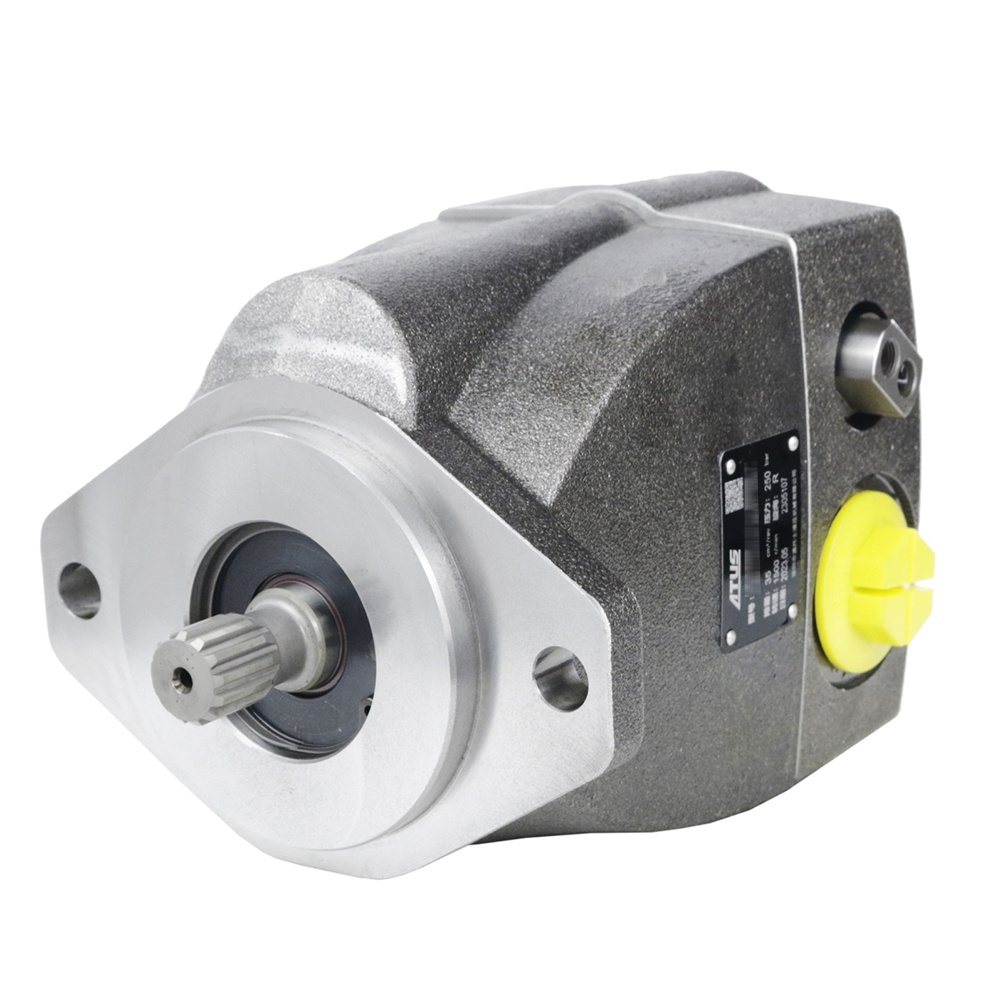

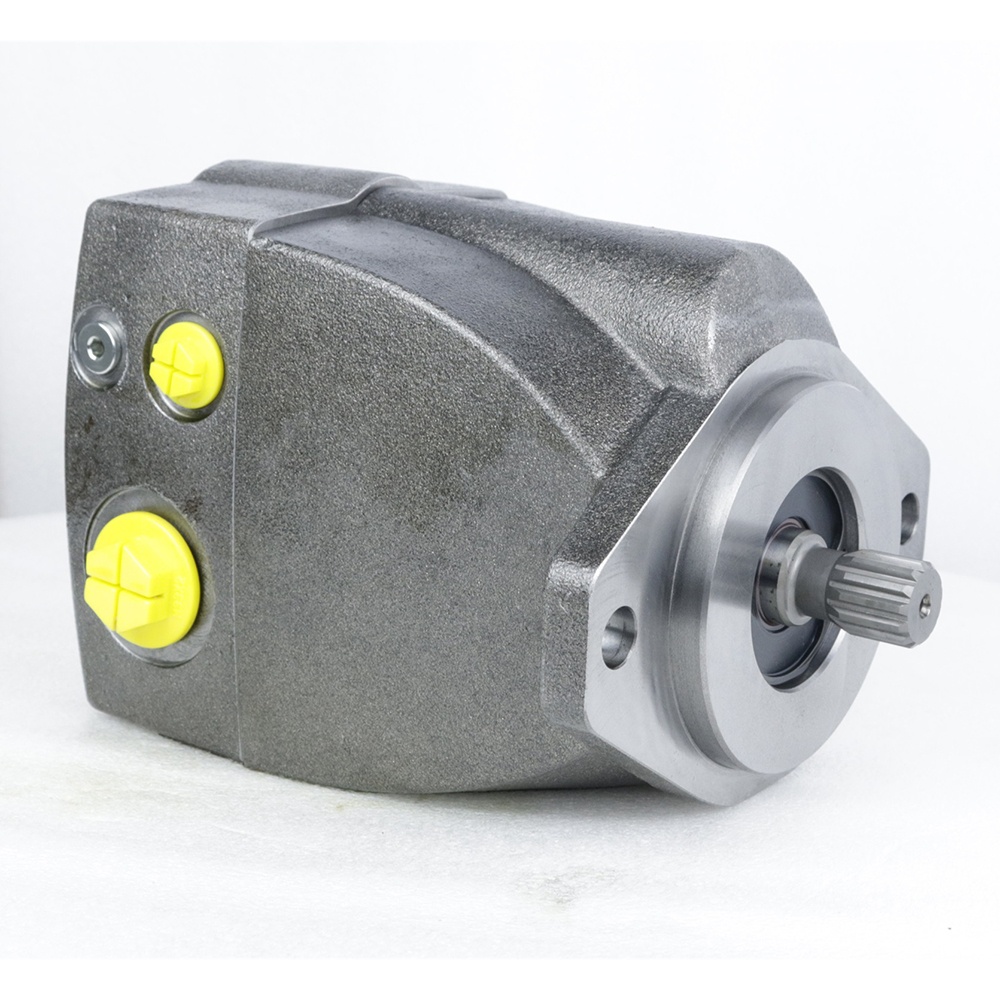

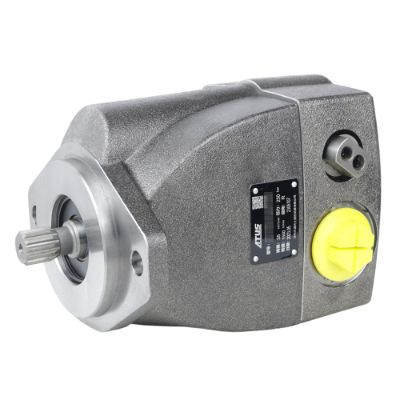

ATUS A1VO series swash plate variable axial piston pump is designed for open-circuit hydrostatic systems of compact mobile machinery. It adopts swash plate design with stepless flow regulation. Available in 18/28/35cc displacement options, featuring compact structure, high power density and low noise performance. It can be used as a high-efficiency upgrade alternative to fixed gear pumps, supporting multiple control modes and through-drive multi-pump combination.
Technical Specifications:
Size NG: 35
Displacement(cm³): 35
Speed(rpm): 3000
Flow (L/min)：105
N.W.(KG): 16.9
Rated Pressure: 250 bar
Reak Pressure: 280 bar
Application Field: Hydraulic systems used in agriculture and small tractors
Features
Swash plate structure, stepless flow adjustment by changing swashplate angle
Integrated control valve assembly, compact layout and easy installation
Excellent suction performance, stable operation under high suction speed
Low noise design to reduce overall equipment noise level
Multiple control options: DR pressure control, DRSO load sensing control, D3/D4 proportional electric control
Up to 15% energy saving compared with fixed displacement gear pump systems
High power density, small dimension with strong output capability
Interchangeable through-drive adapter for multi-pump tandem combination
Heavy-duty cast iron housing for enhanced durability
Various sealing material options compatible with different hydraulic fluids
Advantages
Direct replacement for traditional gear pumps, simple system upgrade without major modification
Load sensing control option reduces unnecessary power loss and cuts fuel consumption
Small footprint, saves valuable space on compact mobile machines
Optimized internal friction design, high volumetric efficiency for long-time continuous operation
Stable performance under fluctuating working pressure, good anti-shock capability
Modular control design, convenient to change control types according to working conditions
Reliable suction characteristic, less prone to cavitation in poor oil supply environment
Low flow pulsation, less vibration to protect valves and pipelines in hydraulic circuit
Full factory pressure testing, stable batch quality and shorter production lead time
Complete technical documentation and global after-sales support for maintenance
Installation Method
Standard SAE / ISO 3019-1 mounting flange (SAE-A / SAE-B optional), compatible with standard pump mounting interfaces.
Multiple installation positions available: horizontal, shaft-up and shaft-down mounting; full oil filling and air bleeding required before commissioning for vertical installation.
Two connection modes: direct flange coupling connection or cardan shaft drive connection.
Through-drive design allows tandem mounting of secondary hydraulic pumps, flexible multi-pump assembly.
Hydraulic ports support inch thread or metric thread with O-ring sealing.
Shaft options: splined shaft, easy alignment and installation.
Application Range
Mini excavators, skid steer loaders, compact wheel loaders, self-propelled agricultural sprayers, aerial work platforms, municipal sanitation vehicles, auxiliary hydraulic circuits, fan drive systems and machine steering systems.
Notes & Service
Please confirm displacement, control type, rotation direction, mounting flange type and oil medium before ordering.
ATUS A1VO hydraulic pump supports modular assembly and field maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
