Product Introduction

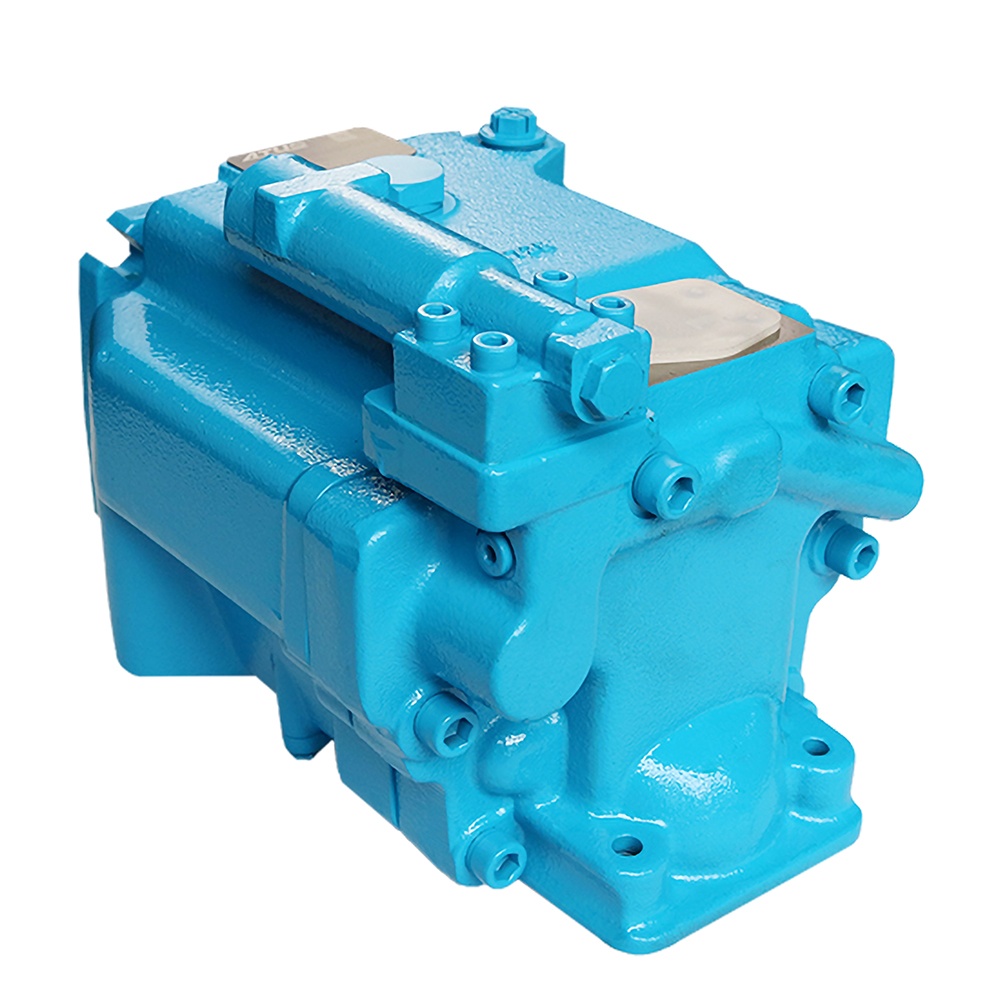

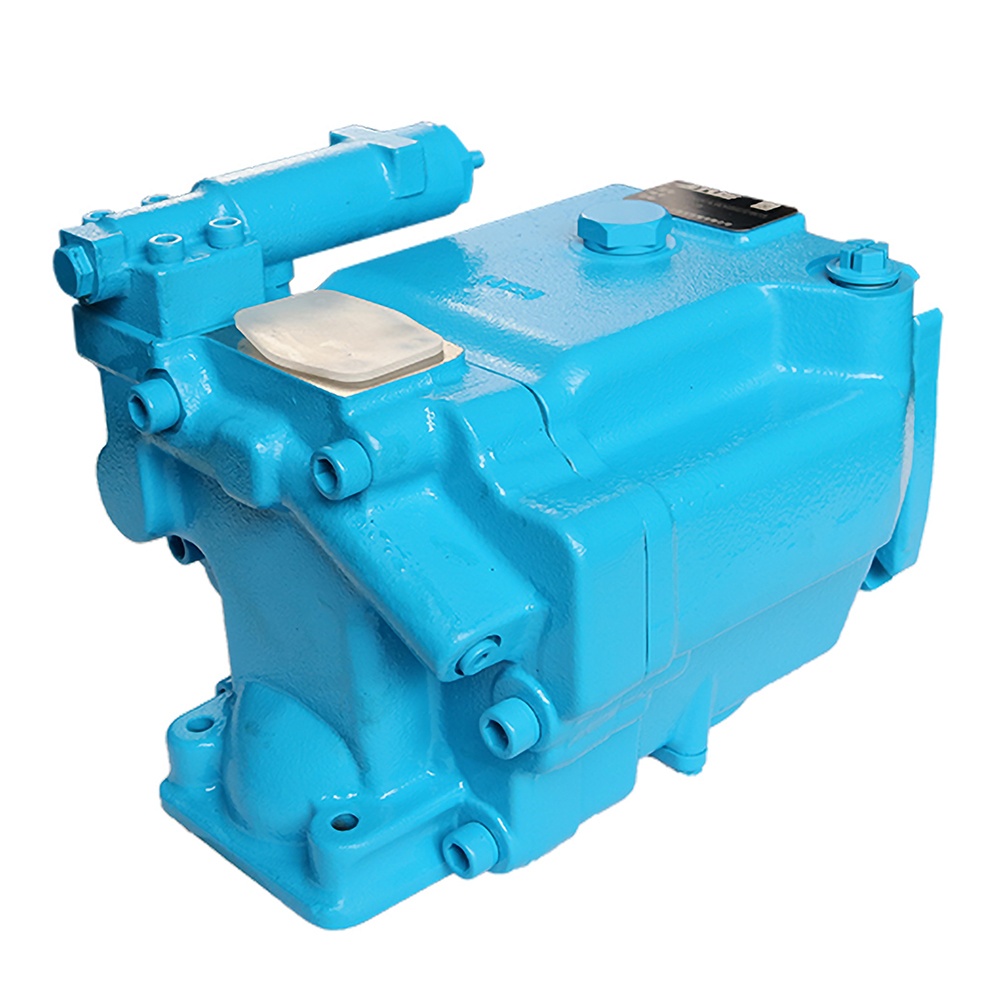

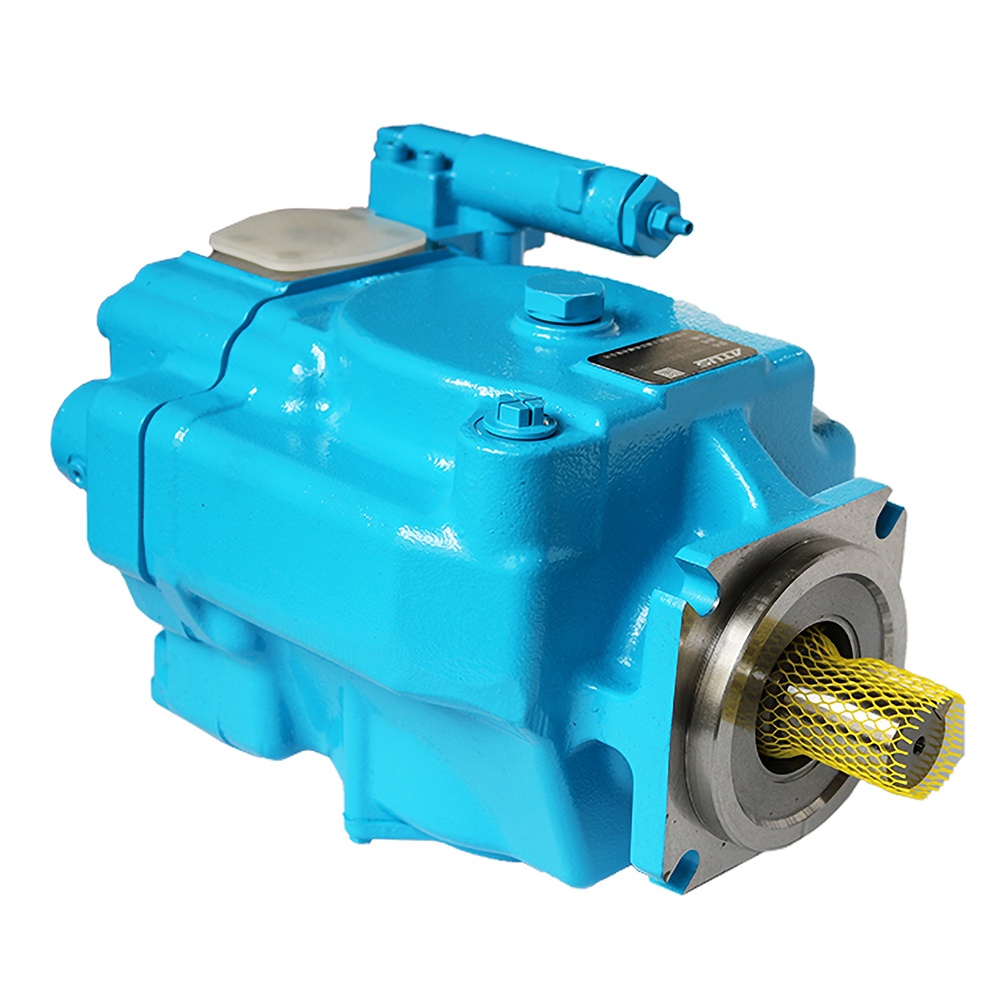

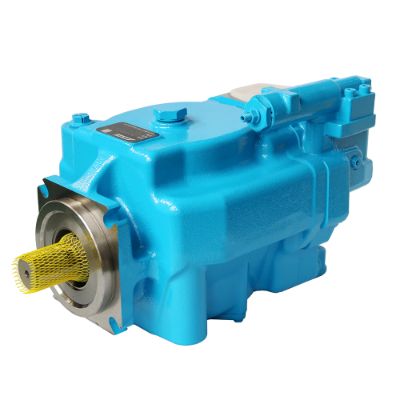

ATUS PVH Series inline variable axial piston pump is designed for open-circuit high-performance hydraulic systems. Available displacements include PVH057, PVH074, PVH098, PVH131. Rated continuous pressure reaches 250 bar, peak pressure up to 280 bar. It supports single pump and full power through-drive versions, compact and lightweight structure. Widely used in heavy mobile and industrial hydraulic equipment as a direct replacement pump.
Technical Specifications:
Size NG: 57 / 74 / 98 / 131
Displacement(cm³): 57.4 / 73.7 / 98.3 / 131.1
Speed(rpm): 1800
Flow (L/min) : 98 / 125 / 170 / 223
N.W.(KG): 31 / 42 / 44 / 62
Rated Pressure: 250 bar
Reak Pressure: 300 bar
Application Field: Used in steel plants, rolling mills, heating furnaces, earthmoving machinery, construction machinery, machine tools, plastic machinery, etc.
Features
Inline straight-axis swashplate variable structure, high volumetric efficiency over 95%
250 bar continuous working pressure, 280 bar peak pressure for heavy-duty cycles
Optional full-power through-drive design for multi-pump stacking assembly
Multiple control selections: pressure compensator, load sensing, remote pressure regulation
Heavy-duty bearing & reinforced shaft design, minimize deformation and wear
Compact lightweight housing, high power density, saves machine installation space
Low noise optimized structure, stable running with low flow pulsation
Multiple shaft extensions and SAE port options for flexible pipeline layout
Dedicated service kits for rotating and control components for on-site repair
Strict factory hydraulic pressure testing to guarantee consistent performance
Product Advantages
High efficiency & energy saving, variable on-demand flow reduces power consumption and heat generation
Low vibration and low noise performance, suitable for noise-sensitive industrial working environments
Modular control assembly, quick switch between different control types
Standard SAE mounting dimensions for easy drop-in replacement
High-strength cast iron housing, strong impact resistance for harsh working sites
Wide displacement range to match diverse high-flow hydraulic power demands
Serviceable internal components, no requirement to replace whole pump, lower maintenance cost
12-month warranty with professional after-sales technical support
Installation Method
Mounting form: SAE standard flange mounting, compatible with standard engine and gearbox interfaces
Mounting orientation: Horizontal installation preferred; vertical shaft-up installation is available, shaft-down mounting needs customized case drain design
Port layout: SAE side inlet & outlet ports; case drain port shall be installed at the lowest position of pump casing
Shaft connection: Adopt flexible coupling to connect prime mover; avoid excessive radial and axial load on pump shaft
Through-drive model: Multiple pumps can be stacked in series to realize combined hydraulic power supply
Installation note: Maintain proper oil level for drain line, prevent air suction and cavitation damage
Application Range
Earthmoving & construction machinery, injection molding machines, rubber & plastic machinery, machine tools, mining equipment, metallurgical machinery, marine deck hydraulic systems and other high-pressure open-circuit hydraulic systems.
Notes & Service
Please confirm model code, displacement, control type, mounting style and rotation direction before ordering.ATUS PVH hydraulic pumps support modular assembly and field maintenance.We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
