Product Introduction

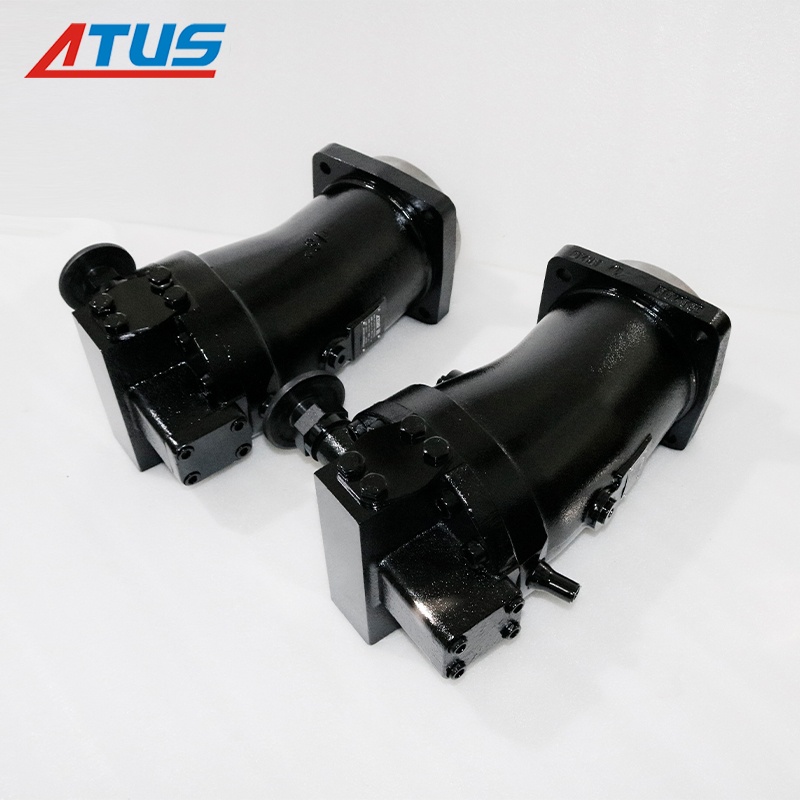

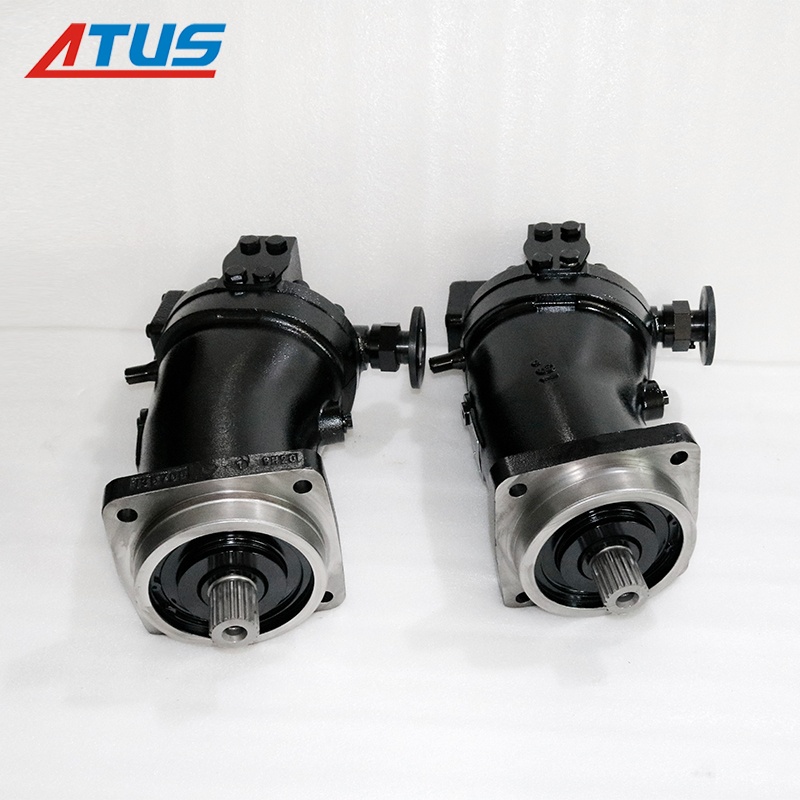

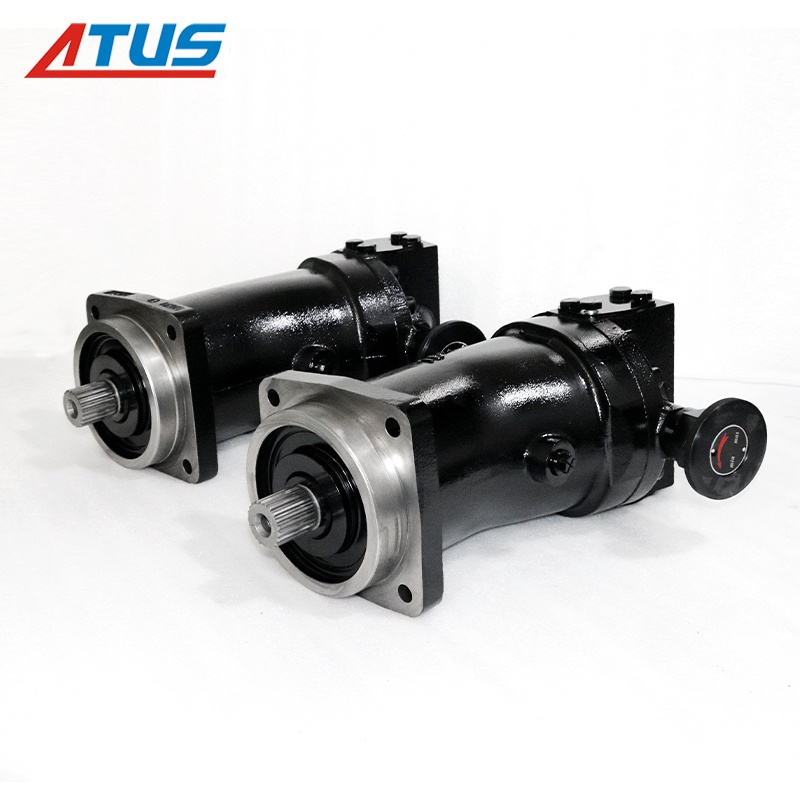

ATUS A6V series bent-axis variable displacement axial piston hydraulic motor is designed for hydrostatic transmission in both open and closed circuits. It features infinitely adjustable displacement from maximum to near zero, delivering flexible switch between high-speed low-torque and low-speed high-torque output. Multiple control options and displacement sizes are available, standard mounting dimensions support direct drop-in replacement for mobile and industrial hydraulic systems.
Technical Specifications:
Size NG: 28 / 55 / 80 / 107 / 160 / 225 / 250 / 468
Displacement(cm³): 28.1 / 54.8 / 80 / 107 / 160 / 225 / 250 / 468
Speed(rpm): 6250 / 5000 / 4500 / 4000 / 3500 / 3100 / 2500
Torque p=350bar (Nm): 156 / 305 / 445 / 595 / 890 / 1252 / 1391 / 2604
N.W.(KG): 18 / 27 / 39 / 52 / 74 / 103 / 232
Rated Pressure: 350 bar
Reak Pressure: 400 bar
Design Type: Bent-axis design, fixed displacement
Configuration: Heavy-duty roller bearings with compact structure
Functionality: Dual-purpose hydraulic pump and motor
Application Field: Used in engineering machinery and mining equipment, such as horizontal directional drilling rigs, tunnel fully hydraulic drilling rigs, rotary drilling rigs, etc., which require high-speed rotation for working parts
Features
Bent-axis variable piston structure, infinitely variable displacement
Wide speed & torque adjustment range to meet variable working demands
Multiple control modes: hydraulic pilot, electric proportional, high-pressure auto, speed sensing and manual control
High power density, compact housing with low moment of inertia
Excellent starting efficiency and smooth rotation with low noise
Robust heavy-duty bearing assembly for long service life
Works reliably in both open-loop and closed-loop hydraulic circuits
Various shaft options: splined shaft, keyed shaft and tapered shaft
Strong resistance to pressure impact and heavy shock loads
Every unit undergoes full pressure and performance testing before delivery
Advantages
Versatile variable control eliminates complex shift gearbox to cut system cost
Seamless switching between high speed and high torque for variable load conditions
Interchangeable installation dimensions, direct replacement to reduce machine downtime
Optimized friction pairs maintain high volumetric efficiency and lower heat generation
Wide adjustable swivel angle delivers broad working range for diverse operating cycles
Stable performance under temperature variation, reliable for cold start
Complete displacement range covers different torque and speed requirements
Heavy-duty cast housing works steadily in harsh construction & mobile environments
Precision in-house machining guarantees consistent batch quality
ATUS global technical support and fast spare parts supply
Application Range
Widely used in rotary drilling rigs, road rollers, asphalt pavers, concrete machinery, crane rotary drives, mining equipment, forestry machinery, special mobile vehicles and heavy-duty industrial hydrostatic transmission systems.
Notes & Service
Please confirm model, displacement, control type, shaft type and working pressure before placing orders.
ATUS A6V variable hydraulic motor supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
