Product Introduction

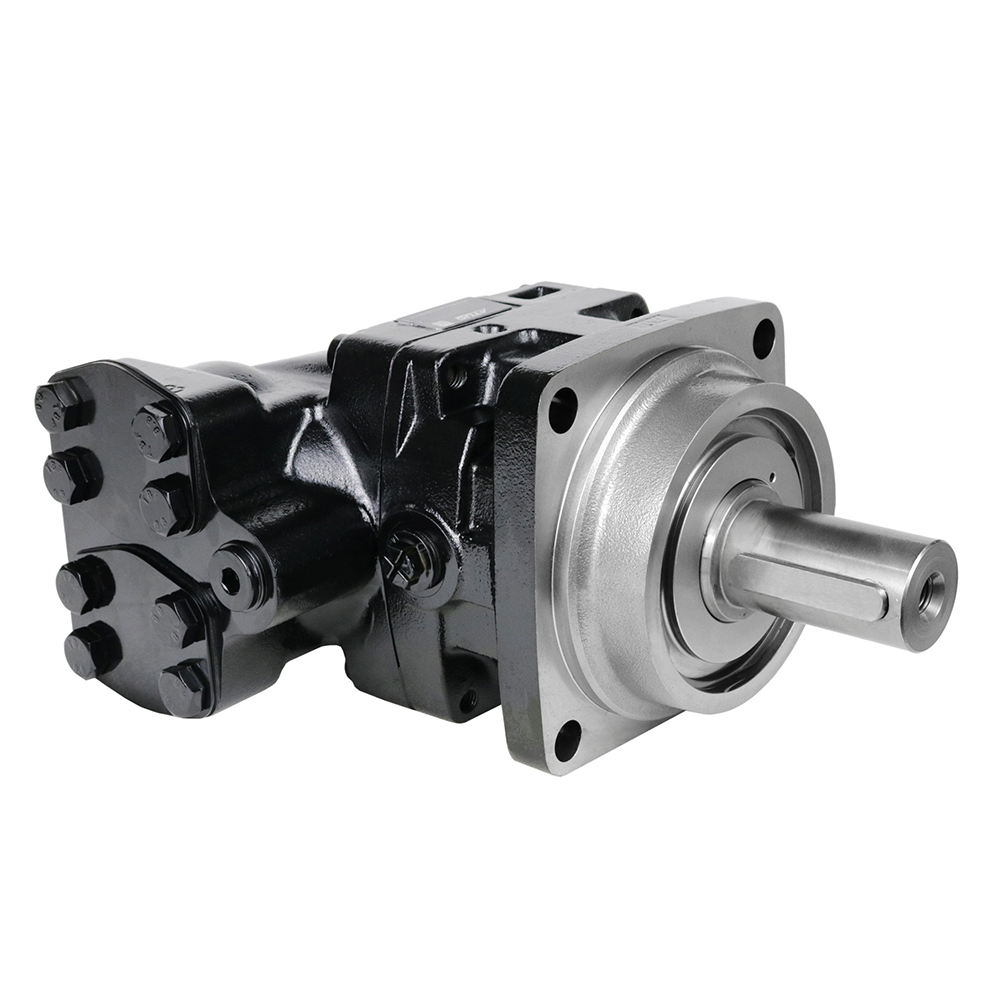

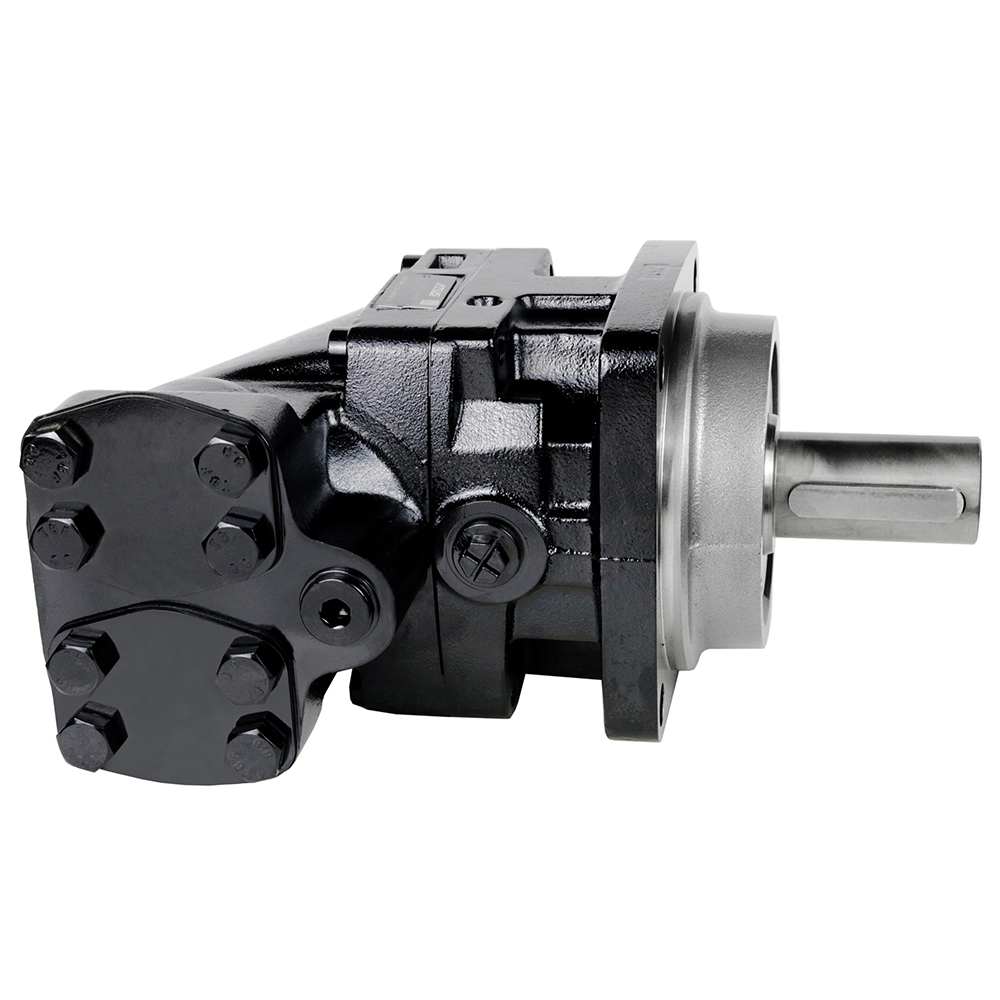

ATUS F12 series bent-axis fixed displacement axial piston unit can serve as both hydraulic motor and pump, engineered for heavy-duty open and closed hydraulic circuits. Adopting 40° bent-axis spherical piston structure with laminated piston rings, it delivers outstanding high-pressure & high-speed performance. Multiple displacement options from 30cc to 250cc are available, standard SAE/ISO mounting dimensions support direct drop-in replacement for mobile and industrial hydraulic systems.
Technical Specifications:
Size NG: 30 / 40 / 60 / 80 / 90 / 110 / 125 / 152 / 162 / 182 / 250
Displacement(cm³): 30 / 40 / 59.8 / 80.4 / 93 / 110.1 / 125 / 149.8 / 163.1 / 179.8 / 242
Speed(rpm): 6700 / 6100 / 5300 / 4800 / 4600 / 4400 / 4200 / 3700 / 3700 / 3700 / 2700
Torque p=350bar (Nm): 167 / 222 / 332 / 447 / 517 / 612 / 694 / 844 / 900 / 1012 / 1345
N.W.(KG): 11.5 / 15.7 / 18.6 / 25.7 / 33 / 40 / 77
Rated Pressure: 420 bar
Reak Pressure: 480 bar
Design Type: Bent-axis design, fixed displacement
Configuration: Heavy-duty roller bearings with compact structure
Functionality: Dual-purpose hydraulic pump and motor
Application Field: Used in mechanical equipment that requires high-speed rotation, such as: hydraulic travel, high-speed cutting motors, rotary digging power heads, winches, high-frequency vibration pile hammers, etc.
Features
40° bent-axis design, compact and lightweight with high power density
Max intermittent pressure up to 480 bar, continuous working pressure 420 bar
7 or 9 piston configuration, high starting torque and smooth rotation
Laminated piston ring structure, low internal leakage and excellent thermal shock resistance
Unique timing gear synchronizes shaft and cylinder barrel, strong anti-vibration capability
Supports high rotating speed, suitable for high-power compact drive setup
Multiple mounting options: ISO, SAE and cartridge versions
Wide shaft selections: splined, keyed and tapered shafts
Works for both open-loop and closed-loop hydraulic circuits
Every unit undergoes strict pressure & performance testing before shipment
Advantages
Interchangeable mounting dimensions, direct replacement to minimize machine downtime
Spherical piston & laminated ring design maintains high volumetric efficiency to reduce energy consumption
Fewer moving internal parts, robust structure for extended service life under shock loads
High pressure and high speed capacity, great power output within limited installation space
Excellent resistance to torsional vibration and heavy G-force in harsh working conditions
Dual-purpose as pump or motor, flexible for different system layout requirements
Stable performance under temperature fluctuation, reliable for cold start conditions
Complete displacement range to match various torque and flow demands
In-house precision machining ensures consistent batch quality
ATUS global technical support and fast spare parts supply
Application Range
Widely used in forestry cutting equipment, winch drives, fan drives, drilling equipment, construction machinery, marine hydraulic systems, heavy-duty mobile machinery and high power compact hydraulic transmission.
Notes & Service
Please confirm model, displacement, rotation direction and shaft type before placing orders.ATUS F12 hydraulic motor/pump supports modular replacement and on-site maintenance.We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
