Product Introduction

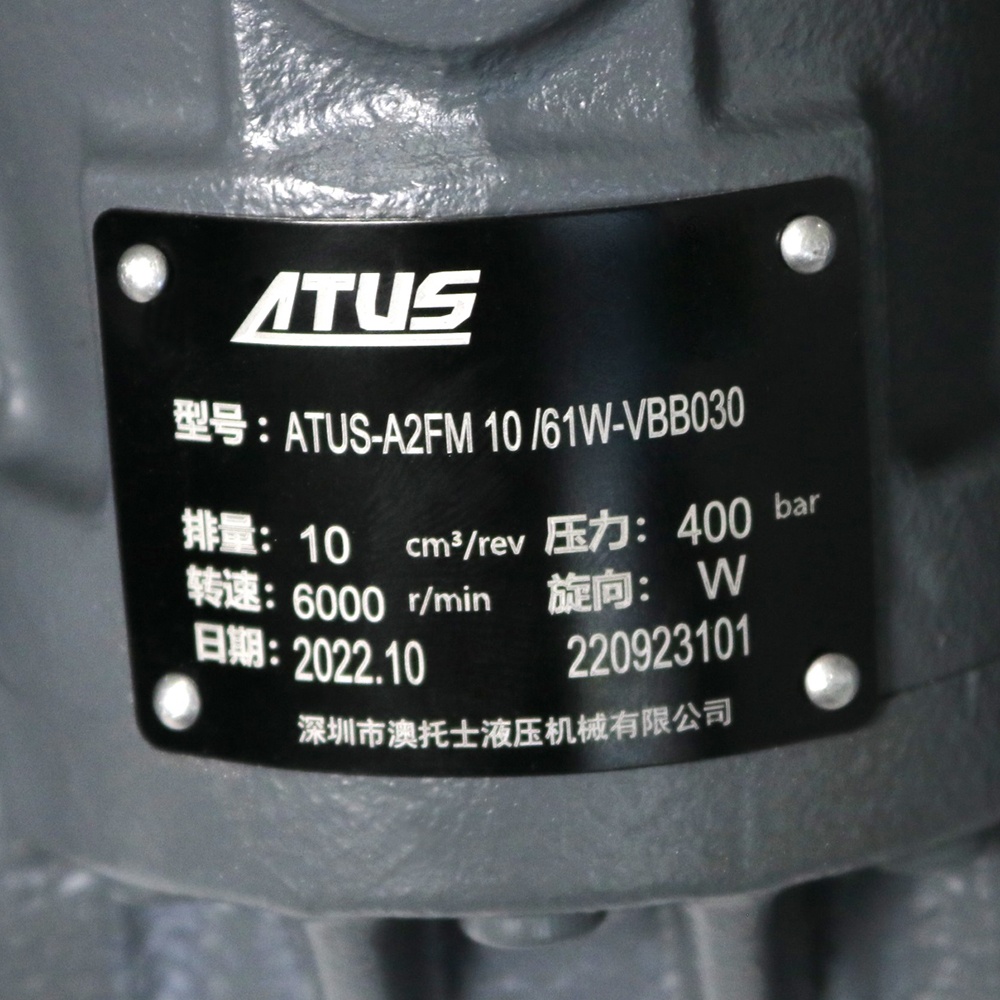

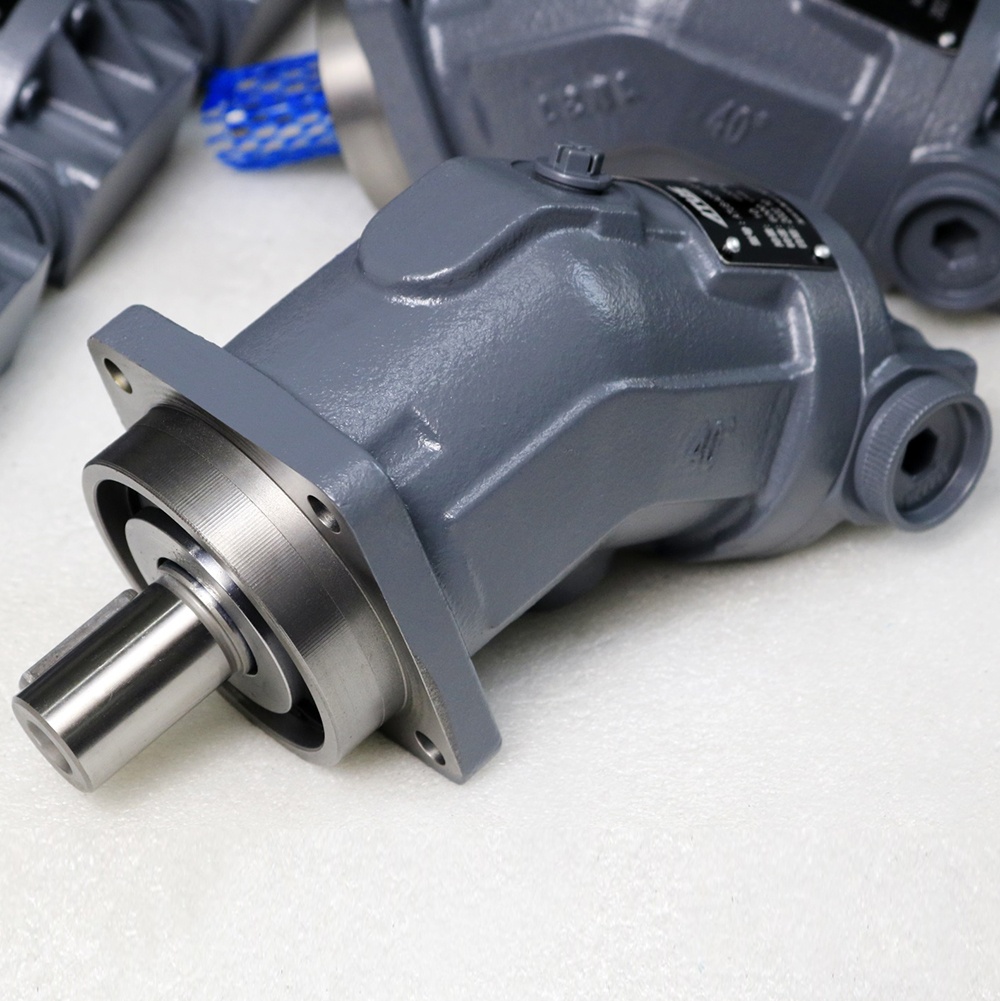

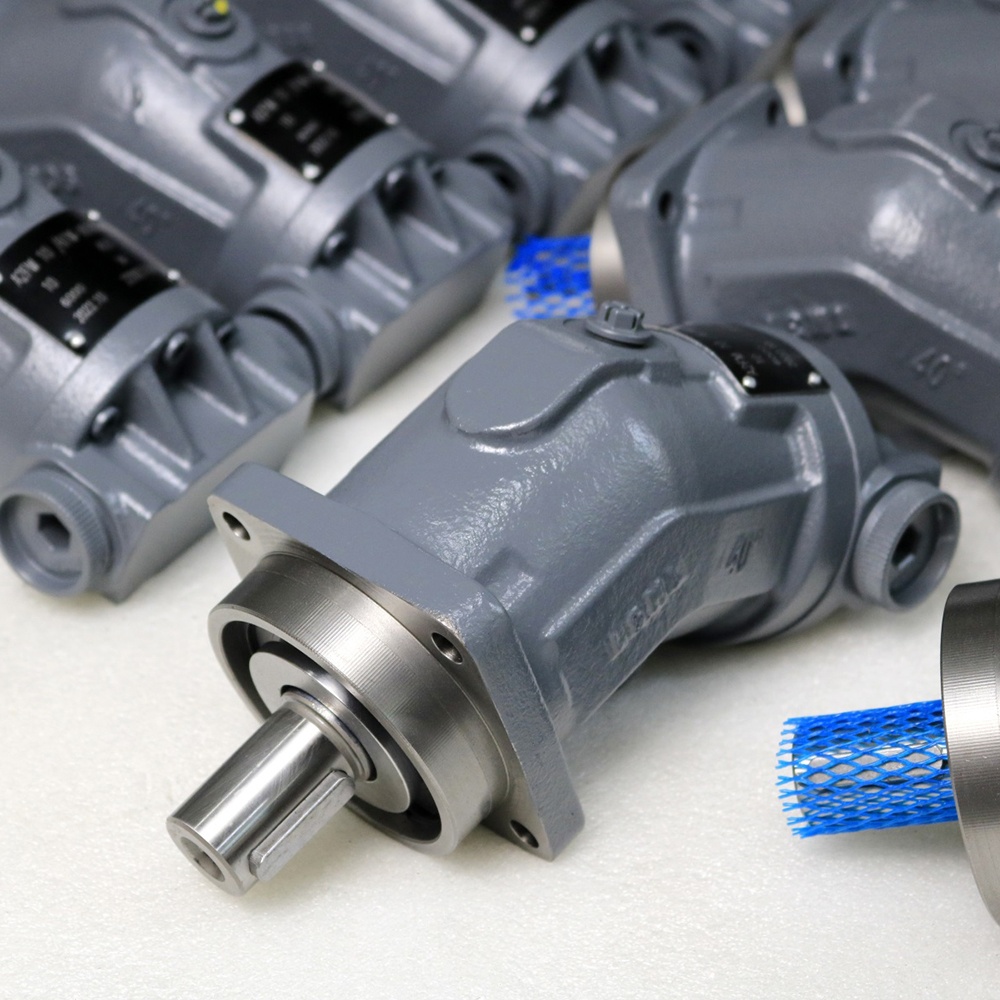

ATUS A2FM series bent-axis fixed displacement axial piston hydraulic motor is engineered for hydrostatic transmission in open and closed hydraulic circuits. Adopting one-piece tapered piston structure with piston rings, it delivers stable constant torque output proportional to system pressure difference. Displacement covers 10cc to 355cc, standard ISO mounting interfaces support direct drop-in replacement for mobile and industrial hydraulic equipment.
Technical Specifications:
Size NG: 10 / 12 / 16 / 23 / 28 / 32 / 45 / 56 / 63 / 80 / 90 / 107 / 125 / 160 / 180 / 200 / 250 / 355
10 / 12 / 16 / 23 / 28 / 32 / 45 / 56 / 63 / 80 / 90 / 107 / 125 / 160 / 180 / 200 / 250 / 355
Speed(rpm): 8000 / 8000 / 8000 / 6300 / 6300 / 6300 / 5600 / 5000 / 5000 / 4500 / 4500 / 4000 / 4000 / 3600 / 3600 / 2750 / 2700 / 2240
Torque p=350bar (Nm): 27.3 / 33.25 / 54.6 / 69.3 / 79.45 / 105.7
N.W.(KG): 4.7 / 6.5 / 7.5 / 11
Rated Pressure: 350 / 400 bar
Reak Pressure: 450 / 400 bar
Design Type: Bent-axis design, fixed displacement
Configuration: Heavy-duty roller bearings with compact structure
Functionality: Dual-purpose hydraulic pump and motor
Application Field: Used in Rotary execution units used in various mechanical equipment, such as: rotary, winch, walking, rotating power heads
Features
Bent-axis fixed displacement design, constant torque output at given pressure
High power density, compact and lightweight structure
High total efficiency and excellent starting performance
Spherical valve plate with self-aligning function, low internal leakage
Heavy-duty roller & ball bearing set, drive shaft can bear partial radial load
Wide working pressure range: nominal pressure up to 400 bar, peak pressure 450 bar
Supports clockwise & counter-clockwise rotation, easy reversing by oil direction
Multiple shaft options: splined shaft, keyed shaft for different installation needs
Compatible with mineral oil and flame-retardant hydraulic fluid
Every unit passes full pressure and performance testing before delivery
Advantages
Standard interchangeable mounting dimensions, direct replacement to reduce downtime
Optimized piston sealing structure maintains high volumetric efficiency and saves energy
Low friction internal pairs reduce heat generation and extend service life
Outstanding shock resistance, stable running under heavy impact loads
Low noise operation, suitable for long continuous duty cycles
Wide displacement portfolio to match diverse torque and speed requirements
Rugged cast housing, reliable operation in dusty, humid harsh working environments
Stable performance under temperature fluctuation, good cold-start adaptability
Precision in-house machining ensures consistent batch quality
ATUS global technical support and fast spare parts supply
Application Range
Widely applied on concrete mixer trucks, crane slewing & winch drives, road rollers, agricultural harvesters, drilling rigs, mining machinery, marine auxiliary drives, rolling mills and heavy-duty industrial hydraulic rotary systems.
Notes & Service
Please confirm model, displacement, shaft type and rotation direction before placing orders.
ATUS A2FM fixed hydraulic motor supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
