Product Introduction

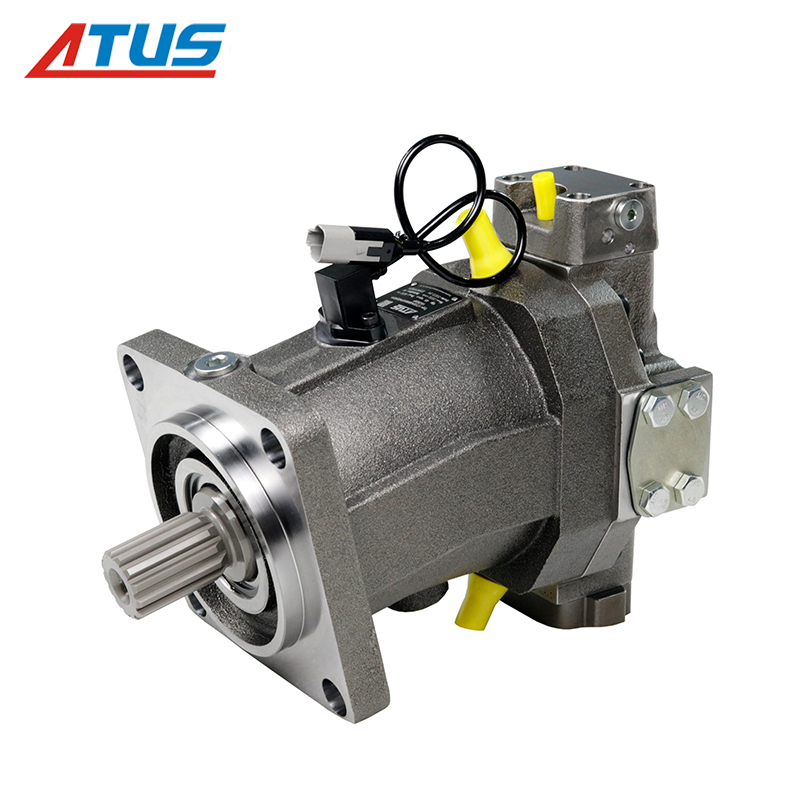

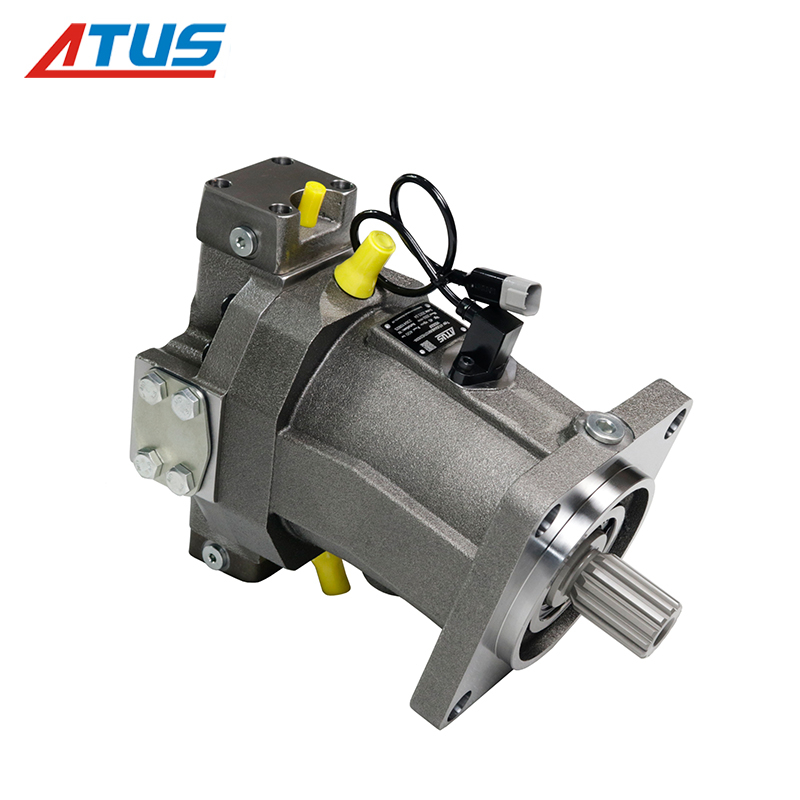

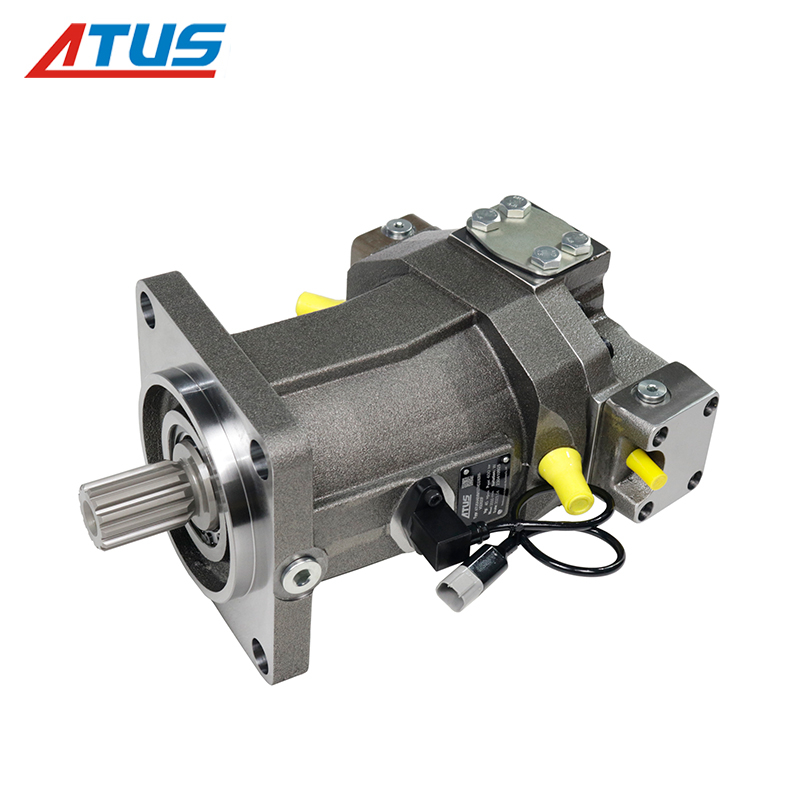

ATUS AA6VM series bent-axis variable displacement axial piston motor is engineered for hydrostatic transmission in both open and closed hydraulic circuits. Featuring tapered piston rotary assembly, it delivers wide adjustment range from max displacement down to zero displacement. High power density and stable high-pressure performance make it ideal direct replacement for mobile heavy machinery. Multiple displacement sizes and diverse control options are available.
Technical Specifications:
Size NG: 28 / 55 / 80 / 107 / 140 / 160 / 200 / 250 / 355 / 500 / 1000
Displacement(cm³): 28.1 / 54.8 / 80 / 107 / 140 / 160 / 200 / 250 / 355 / 500 / 1000
Speed(rpm): 5500 / 4450 / 3900 / 3550 / 3250 / 3100 / 2900 / 2700 / 2240 / 2000 / 1600
Torque p=350bar (Nm): 179 / 349 / 509 / 681 / 891 / 1091 / 1273 / 1391 / 1978 / 2785 / 5571
N.W.(KG): 16 / 26 / 34 / 47 / 60 / 64 / 80 / 700 / 170 / 210 / 430
Rated Pressure: 350 / 400bar
Reak Pressure: 400 / 450 bar
Application Field: Used in engineering machinery, agricultural machinery, forestry machinery, mining equipment, etc., hydraulic travel, and working parts that require high-speed rotation.
Features
Bent-axis tapered piston structure, supports high nominal pressure operation
Infinitely variable displacement adjustable from full displacement to zero
Wide speed & torque range, meets high-speed and high-torque dual demands
Multiple control selections: hydraulic, mechanical and electric control types
Compact footprint with robust bearing system for extended service life
Low moment of inertia, excellent response and starting performance
Compatible with open and closed hydrostatic drive systems
Integrated optional flushing & boost valve for simplified system setup
Standard mounting dimensions for straightforward replacement
Strict factory pressure testing to guarantee consistent quality
Advantages
Fully interchangeable mounting dimensions, direct drop-in replacement to cut retrofit time
Optimized bent-axis friction design, higher volumetric & mechanical efficiency to save energy cost
Heavy-duty bearing configuration, withstands heavy shock loads for long working life
Wide displacement adjustment range, removes need for extra gearbox and reduces system cost
Outstanding low-speed starting torque, stable operation under heavy startup load
Flexible control modules, easy integration with different machine control systems
Strong housing structure, reliable performance in dusty, humid and harsh site environments
Low pulsation output, less vibration to protect the whole hydraulic system
Complete in-house machining & testing, stable batch quality with short lead time
ATUS global technical support, quick spare parts supply for after-market maintenance
Application Range
Widely used in rotary drilling rigs, construction machinery, mining equipment, road rollers, marine drives, forestry machinery and heavy-duty mobile hydrostatic transmission systems.
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.
ATUS AA6VM hydraulic motor supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
