Product Introduction

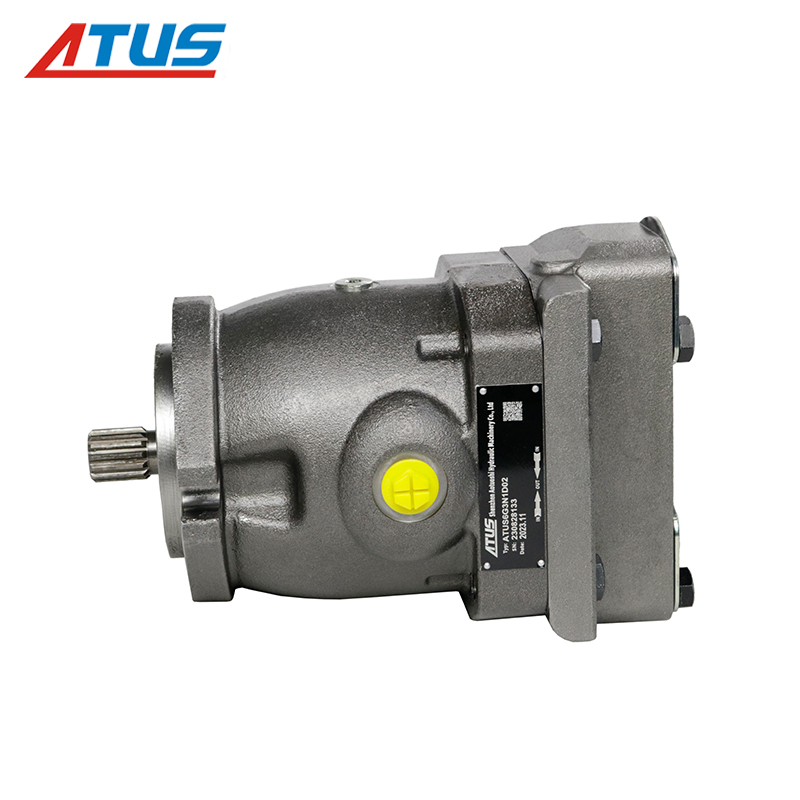

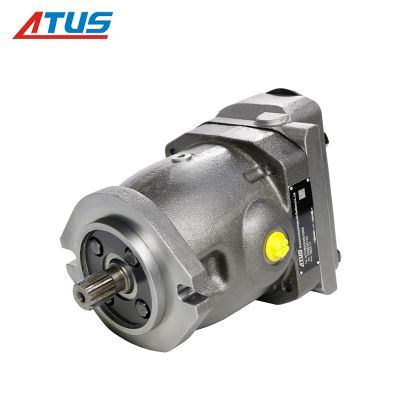

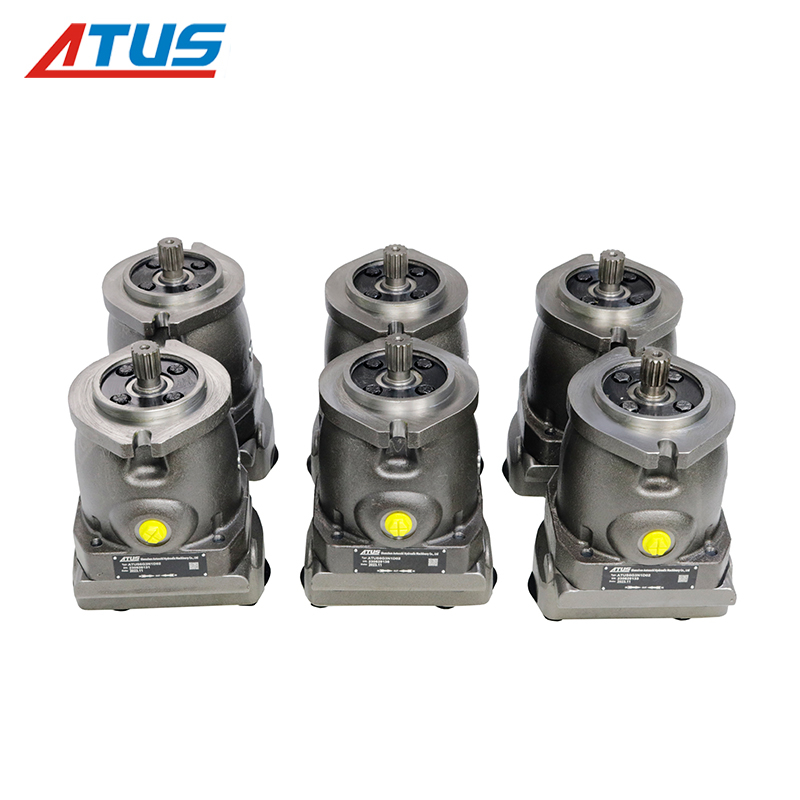

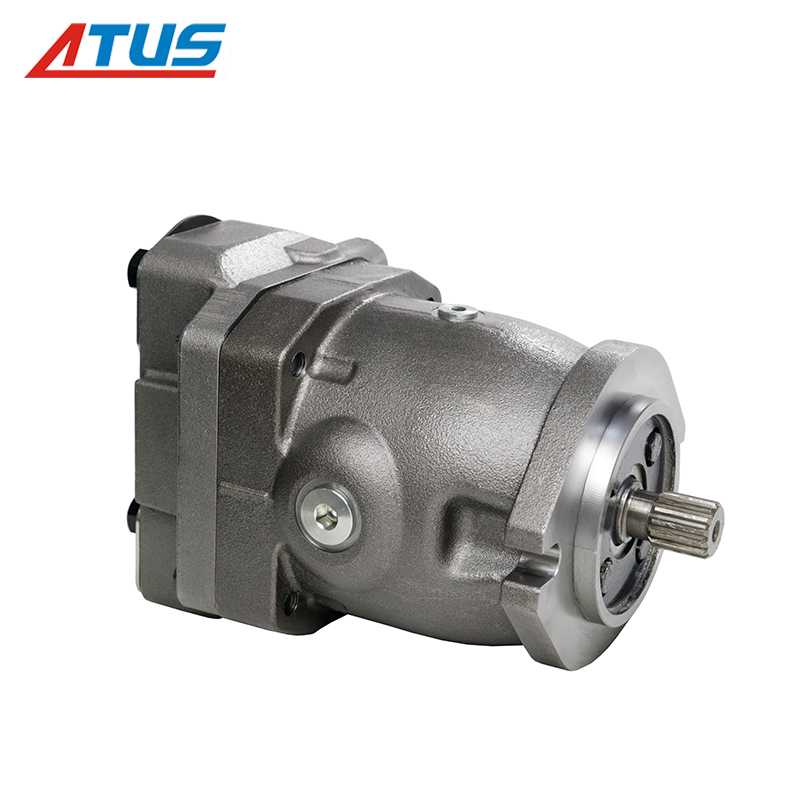

ATUS M Series swash plate variable displacement axial piston pump is designed for medium and high pressure open-circuit hydraulic systems. Adopting advanced swash plate rotating group structure, it provides stable flow output with flexible displacement adjustment. Compact structure and versatile control options make it a perfect replacement component for various industrial and mobile machinery. Multiple displacement specifications are available.
Technical Specifications:
Size NG: 6 / 7 / 11 / 14 / 24 / 30
Displacement(cm³): 98.3 / 118.8 / 180.3 / 229.5 / 403.2 / 501.5
Speed(rpm): 3000 / 3000 / 2400 / 2400 / 2100 / 1800
Torque p=350bar (Nm): 539.5 / 651.9 / 990 / 1250 / 2158 / 2752
N.W.(KG): 50/ 50 / 110 / 110 / 230 / 270
Rated Pressure: 350 bar
Reak Pressure: 420 bar
Application Field: Used in drilling rig rotating power heads, ship cranes, slewing devices and other working parts that require large torque rotation.
Features
Swash plate variable structure, precise flow adjustment according to system demand
High pressure resistance, stable performance under continuous working load
Multiple control types: pressure control, power control, electric proportional control
Modular design, easy to assemble and disassemble
Through-drive design allows multi-pump combination installation
Low noise and low flow pulsation during long-hour operation
Wide applicable speed range, strong adaptability to different power sources
Standard mounting size for convenient direct replacement
High volumetric efficiency to reduce energy consumption
Each unit undergoes strict factory hydraulic testing before delivery
Advantages
Drop-in interchangeable dimensions, fast replacement to minimize machine downtime
Optimized friction pair design, high efficiency to lower customer energy cost
Reliable rotating group, strong anti-shock capacity for long service life
Diverse control modules, flexible matching for different machine working logic
Compact overall layout, saves installation space for equipment upgrade
Stable performance under variable load conditions, reducing system failure rate
Good compatibility with common hydraulic oil, low maintenance threshold
Complete model spectrum to cover different flow and pressure requirements
Stable batch quality with in-house precision machining
Fast spare parts supply and global technical support
Application Range
Suitable for hydraulic power units, injection molding machines, construction machinery, material handling equipment, metal processing machines, environmental protection equipment and general industrial hydraulic systems.
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.ATUS M Series hydraulic pump supports modular replacement and on-site maintenance.We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
