Technical Data:
• Sizes (NG): 18 / 28 / 45 / 71 / 100 / 140
• Displacement Range: 18 cc - 140 cc
• Nominal Pressure: 280 bar
• Peak Pressure: 350 bar
• Circuit Type: Open-loop hydrostatic drives
Control Methods:
• DG — Two-point direct-acting control
• DR — Pressure control
• DRG — Remote pressure control
• DFR / DFR1 — Pressure and flow control
• DFLR — Pressure, flow, and power control
• ED / ER — Electro-hydraulic control
Features & Advantages:

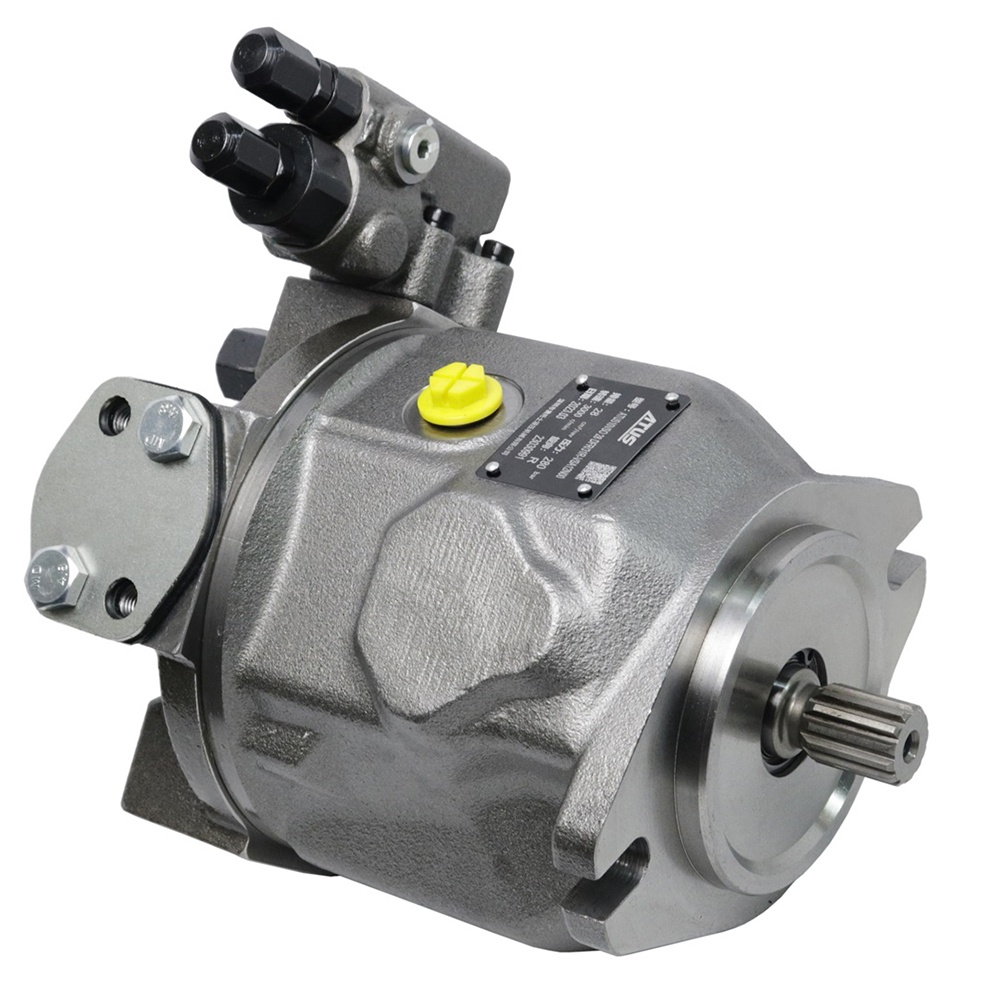

• Axial piston variable pump in swashplate design, specifically engineered for open-circuit hydrostatic transmissions.
• Output flow rate is directly proportional to the drive speed and pump displacement.
• Stepless flow variation can be achieved easily by adjusting the swashplate angle.
• Excellent oil suction performance with exceptionally low operating noise levels.
• Long service life backed by a robust and reliable design.
• 100% through-drive capability, perfectly compatible with mounting additional pumps (such as gear pumps or same-size piston pumps).
