Product Introduction

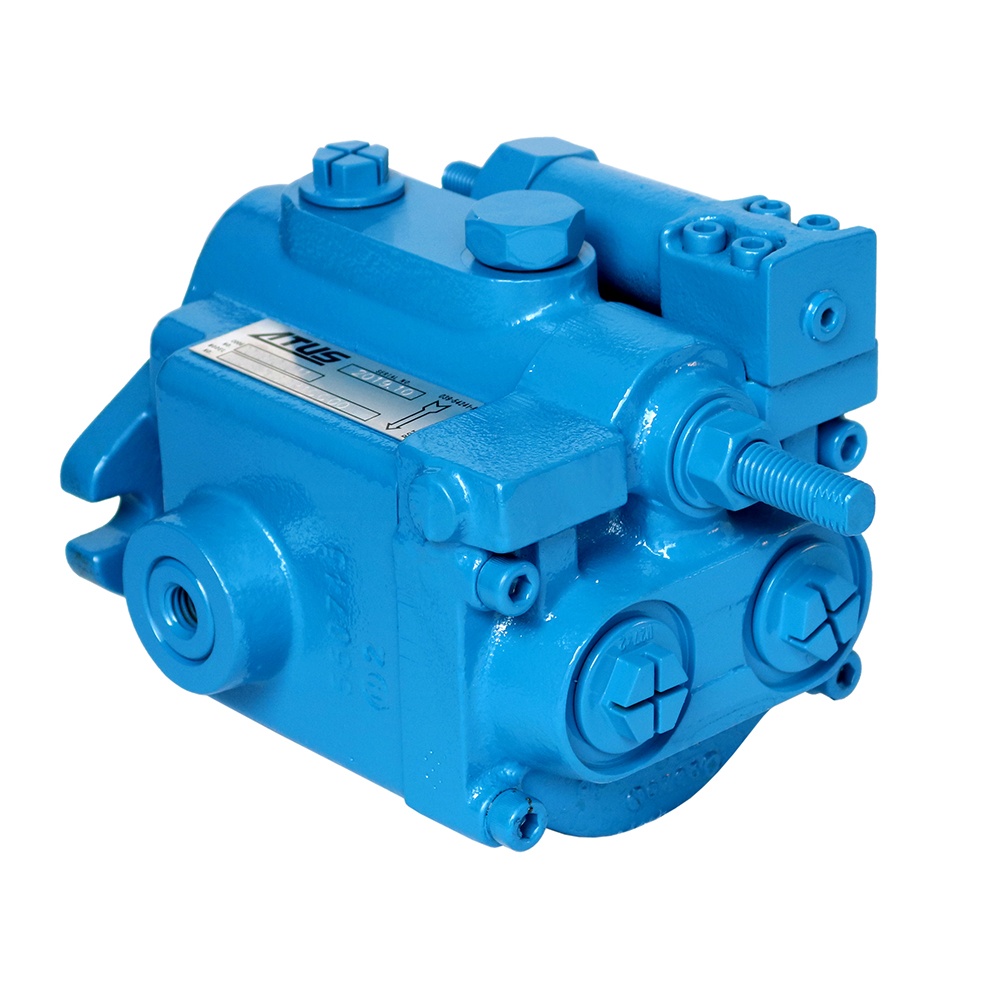

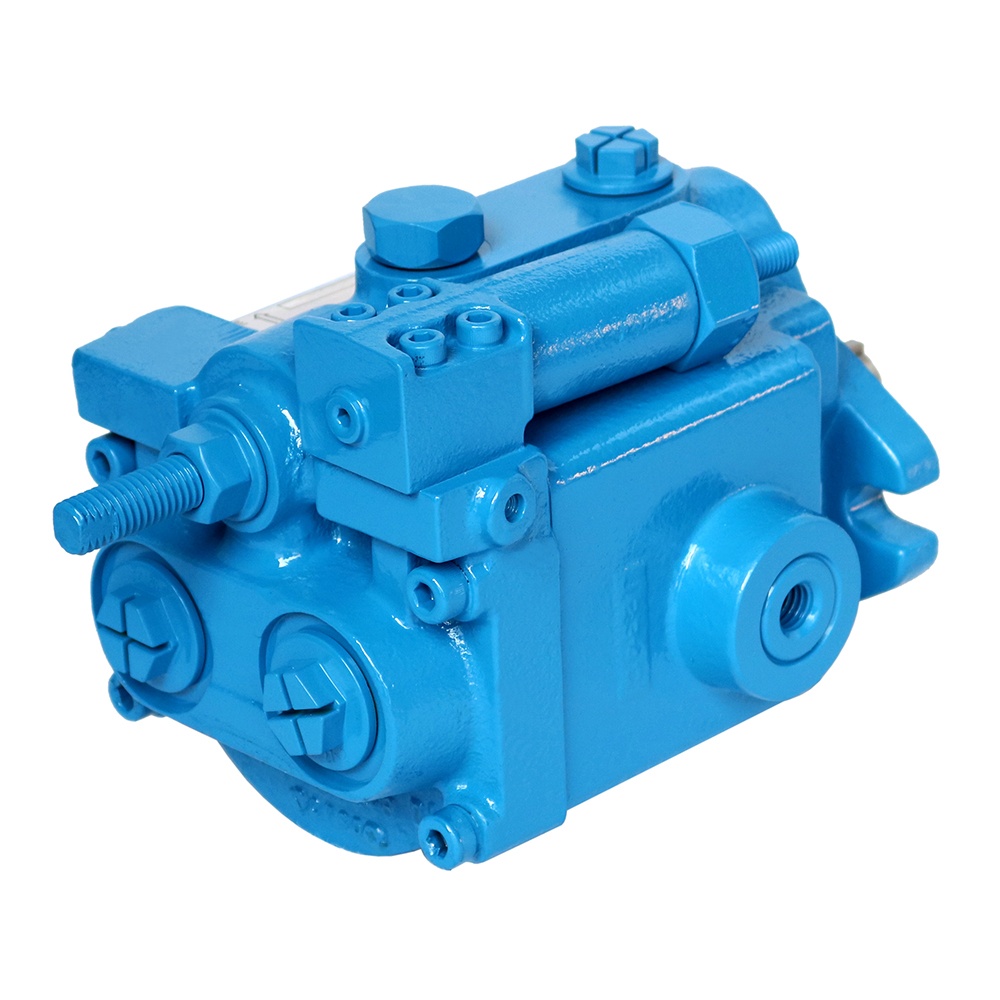

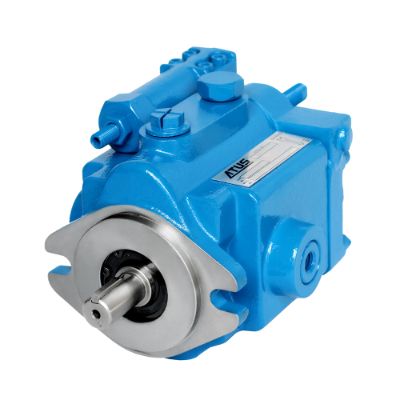

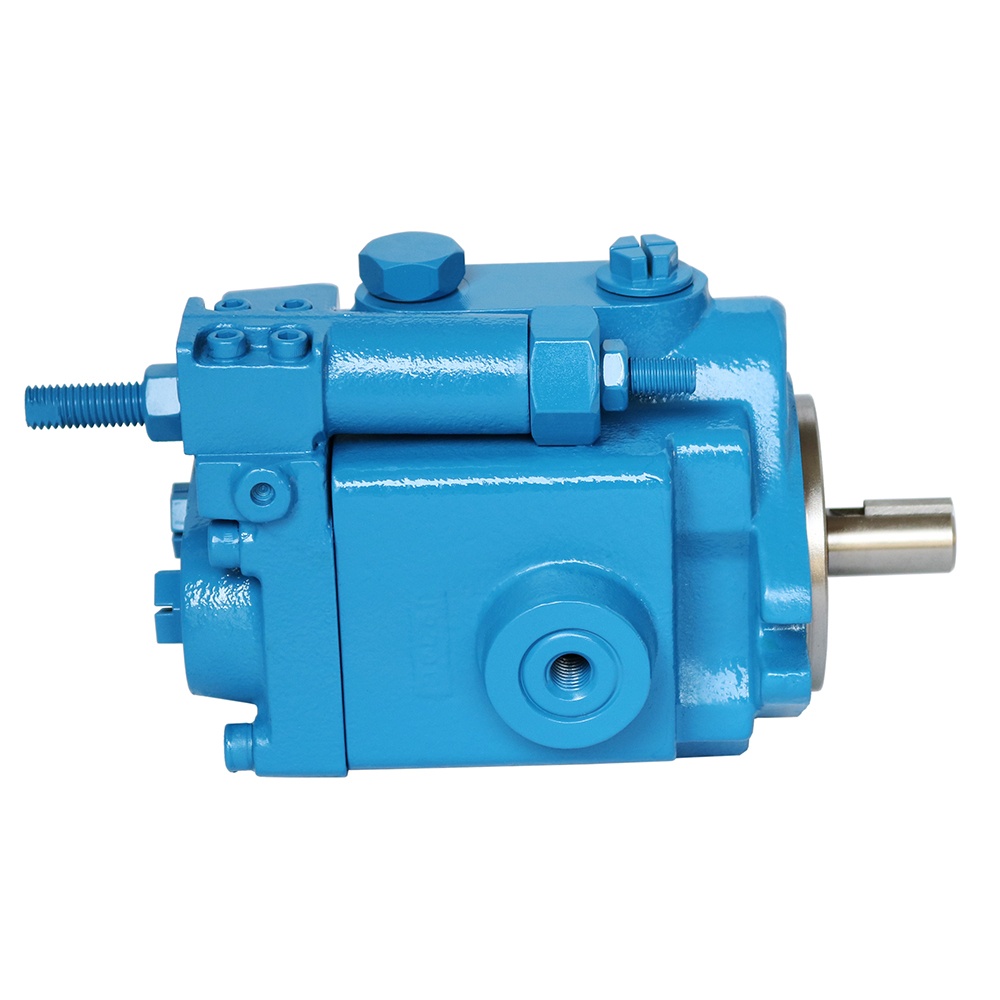

ATUS D-PV Series Axial Piston Variable Pump is swash plate type pump designed for open hydraulic circuits, with pressure compensator (constant pressure) as standard control. Built for low noise and high efficiency, it delivers stable hydraulic power under heavy-duty and harsh working conditions. It features excellent interchangeability for direct replacement of matched pumps. Multiple displacement options and control selections are available.
Technical Specifications:
Size NG: 6 / 10 / 15 / 20 / 29 / 38 / 47 / 64
Displacement(cm³): 14.4 / 20.6 / 34.2 / 42.9 / 61.9 / 80 / 100 / 130
Speed(rpm): 3000 / 2500 / 2400 / 1800
Flow (L/min) : 43.2 / 61.8 / 85.5 / 102.96 / 148.56 / 144 / 180 / 234
N.W.(KG): 14 / 20 / 25 / 32 / 42 / 50 / 71 / 95
Rated Pressure: 240 / 207 / 280 bar
Reak Pressure: 310 / 280 / 300 bar
Application Field: Used in metallurgical industry, injection molding machines, mining equipment, engineering machinery, etc
Features
Swash plate axial piston design with pressure compensation control
Low noise and low flow pulsation across full working range
High volumetric & overall efficiency to cut energy consumption
Strong contamination resistance, stable performance with ordinary hydraulic oil
Full-power through-shaft structure, supporting multi-pump series connection
Adjustable maximum displacement to match system flow demand
Compatible with fire-resistant hydraulic fluids for high safety
Modular control design for flexible control configuration
Side or rear oil port layout for flexible piping arrangement
Strict factory pressure testing for consistent quality
Product Advantages
High power density, high rated pressure to downsize your hydraulic system and save cost
Compact and robust cast housing, long service life with low maintenance
Smooth running, less heat generation to reduce system temperature rise
Great interchangeability, SAE standard mounting dimension for easy replacement
Wide speed range, stable performance for continuous heavy cycle operation
Simple internal structure, convenient for on-site inspection and overhaul
Mounting Method
SAE standard flange mounting, compliant with ISO3019 specification.
Shaft options include SAE spline or metric flat key.
Oil ports adopt SAE 4-bolt flange or BSPP thread.
Through-shaft version allows tandem mounting with other pumps.
Drain port needs to be arranged upward with low backpressure return line.
Application Range
Injection molding machines, die-casting machines, forging equipment, machine tools, marine hydraulic systems, construction machinery, hydraulic power units and other industrial hydraulic systems.
Notes & Service
Please confirm displacement, control type, mounting style, shaft type and rotation direction before ordering.
ATUS D-PV hydraulic pumps support modular assembly and field maintenance.
We provide professional technical support and reliable after-sales service.
