Product Introduction

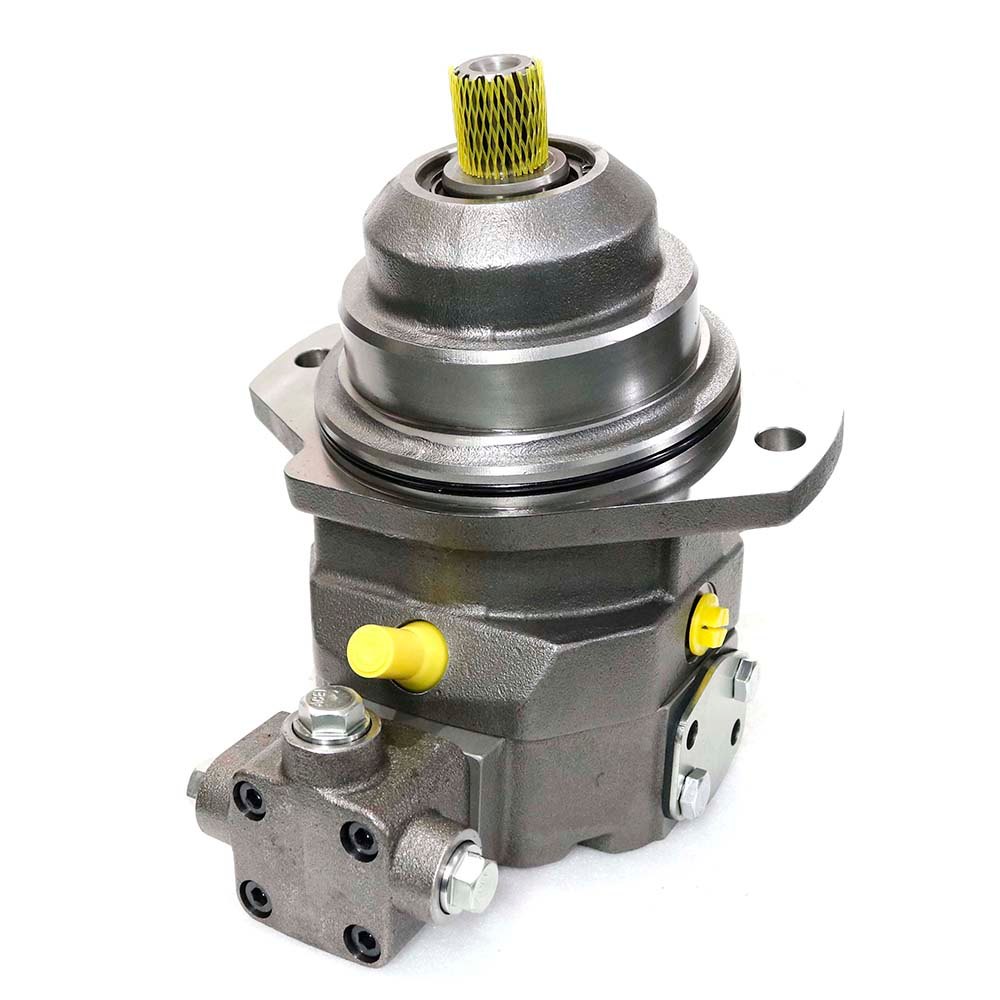

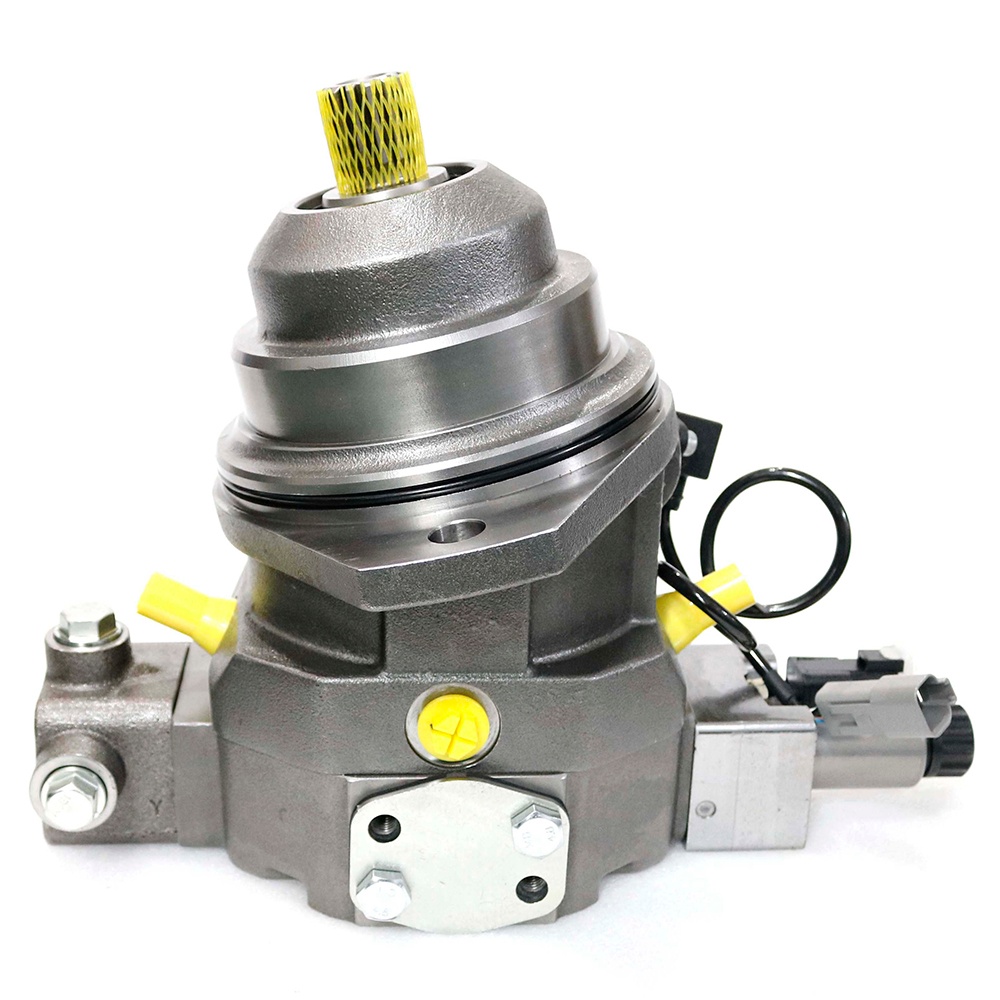

ATUS A6VE series variable displacement axial piston hydraulic motor is developed for closed-circuit hydraulic systems. Robust structure and high torque output make it an ideal replacement hydraulic component for construction machinery and mobile equipment. Multiple displacement options available.
Technical Specifications:
-
Frame Sizes (NG): 28 / 55 / 80 / 107 / 160 / 250
-
Displacement (cm³/rev): 28 / 55 / 80 / 107 / 160 / 250
-
Speed(rpm): 5550 / 4450 / 3900 / 3550 / 3100 / 2700
-
Torque p=350bar (Nm): 157 / 305 / 446 / 596 / 891 / 1391
-
N.W. (KG): 157 / 305 / 446 / 596 / 891
-
Rated Pressure: 350 bar / 400 bar
-
Reak Pressure: 450 bar / 400 bar
-
Motor Type: Axial conical piston variable displacement motor
-
Design Type: Bent-axis design
-
Circuit Compatibility: Suitable for open and closed hydrostatic drives
-
Application Field: Used in mining machinery, ship machinery, engineering machinery, power plants equipment, injection molding machines, steel plants, etc.
Features
-
High starting torque with stable low-speed performance
-
Variable displacement design to adjust output speed flexibly
-
Heavy-duty housing, strong resistance to shock load
-
Wide working pressure range, suitable for closed loop circuit
-
Low leakage and high volumetric efficiency
-
Multiple control modes for different working conditions
-
Compact layout, easy for equipment installation
-
Good thermal stability for continuous heavy-duty operation
-
Modular structure for convenient parts replacement
-
Long service life under harsh working environment
Control Methods:
-
HD – Hydraulic proportional control
-
EP – Electro-proportional control
-
HZ – Two-point hydraulic control
-
EZ – Electronic two-point control
-
HA – High-pressure automatic control
-
DA – Speed-dependent automatic control
Advantages:
-
Versatile Application: Perfectly suited for both mobile and stationary application environments.
-
Infinitely Variable: Supports continuously variable speed adjustment from Vgmax to Vgmin = 0.
-
Highly Responsive: Output speed depends directly on the pump flow rate and the motor displacement.
Application Range
-
Excavators, road rollers, pavers and other construction machinery
-
Concrete mixers, drilling rigs
-
Forestry and agricultural mobile machines
-
Mining and material handling equipment
-
Special mobile hydraulic drive systems
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.
A6VE hydraulic motor supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
