Product Introduction

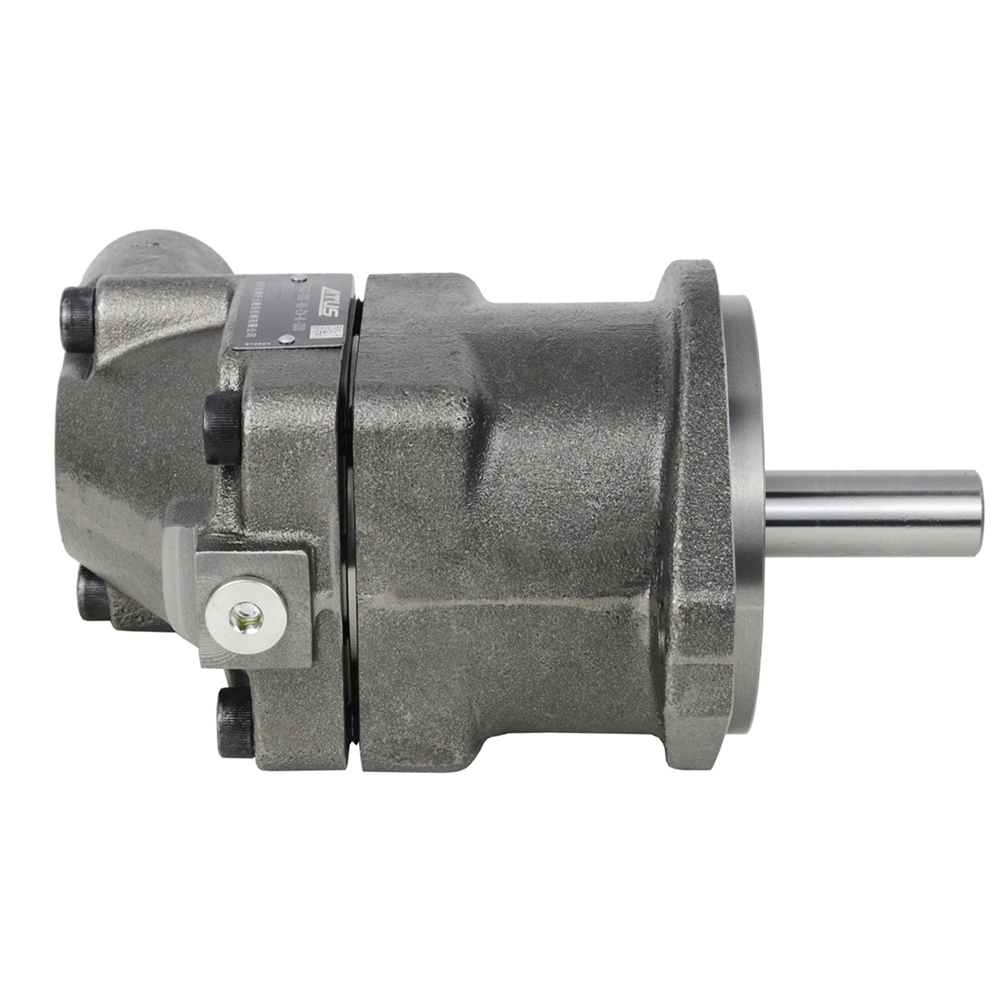

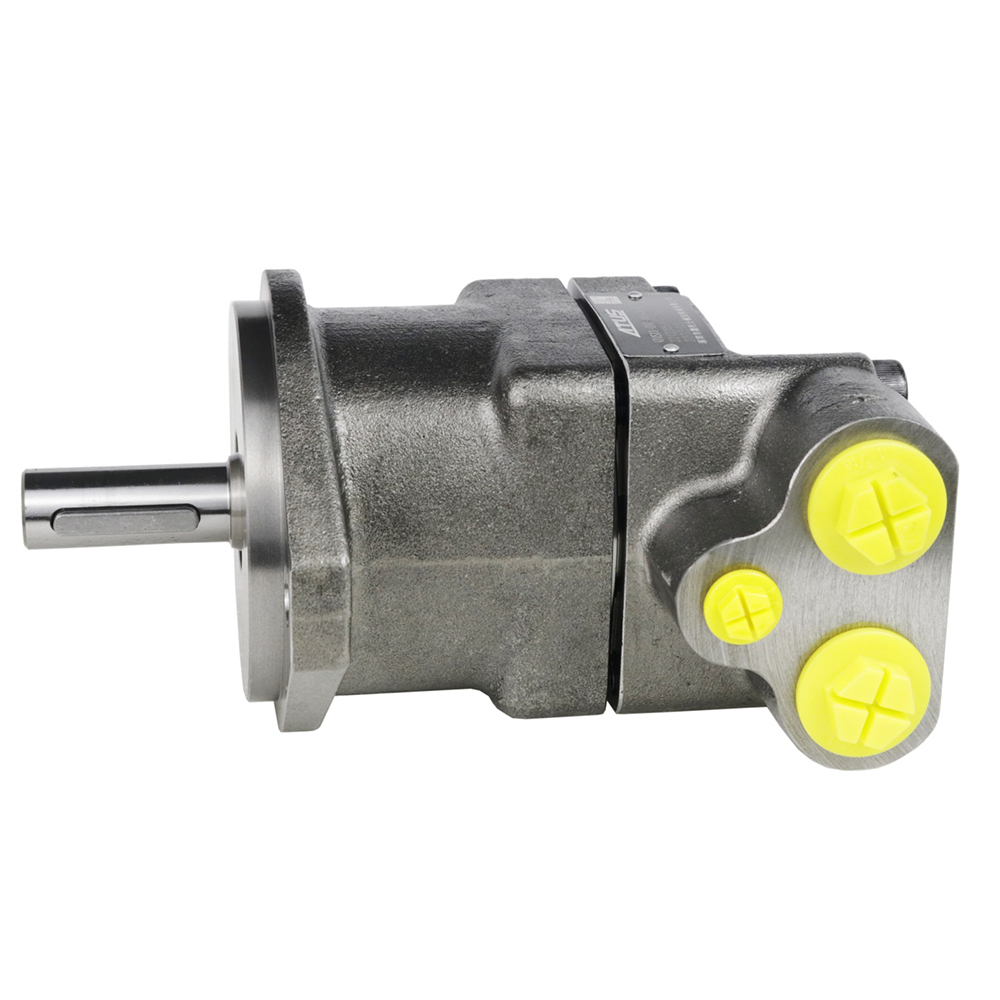

ATUS F11 series fixed displacement axial piston motor is built for high-pressure closed & open circuit hydraulic systems. Lightweight structure and high torque output make it an ideal replacement hydraulic component for mobile machinery and construction equipment. Multiple displacement options available.
Technical Specifications:
Size NG: 5 / 6 / 10 / 12 / 14 / 19
Displacement(cm³): 4.9 / 6 / 9.8 / 12.5 / 14.3 / 19
Speed(rpm): 12800 / 10200 / 9400 / 9000 / 8100
Torque p=350bar (Nm): 27.3 / 33.25 / 54.6 / 69.3 / 79.45 / 105.7
N.W.(KG): 4.7 / 6.5 / 7.5 / 11
Rated Pressure: 350 bar
Reak Pressure: 420 bar
Design Type: Bent-axis design, fixed displacement
Configuration: Heavy-duty roller bearings with compact structure
Functionality: Dual-purpose hydraulic pump and motor
Application Field: Used in high-speed rotating motors, valve wood machines, cutting equipment, walking, etc.
Features:
Operates at extremely high shaft speeds.
Max. operating pressure up to 420 bar, providing powerful torque and output.
40° angle between shaft and cylinder bore design results in a very compact and lightweight structure
Stacked piston rings effectively reduce internal leakage and enhance thermal shock resistance.
Pump-type motor features higher self-priming speed and a low-noise design, equipped with a standard valve plate
F11 series motors have very few moving parts, resulting in extremely high reliability.
Heavy-duty roller bearings can withstand large external axial and radial shaft loads.
Application Range
Construction machinery, road equipment, mining machines, agricultural machinery, marine equipment, mobile hydraulic systems.
Notes & Service
Please confirm model, displacement, rotation direction and mounting type before placing orders.
ATUS F11 hydraulic motor supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
