Product Introduction

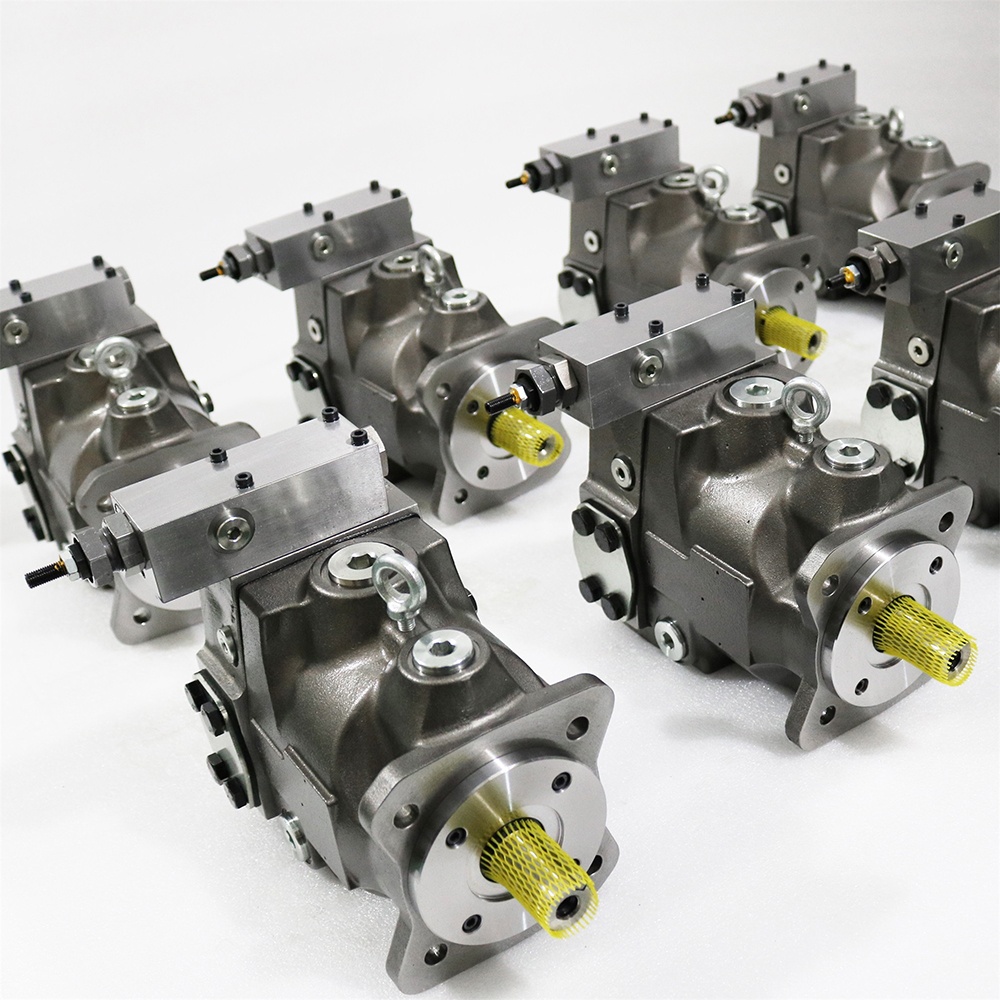

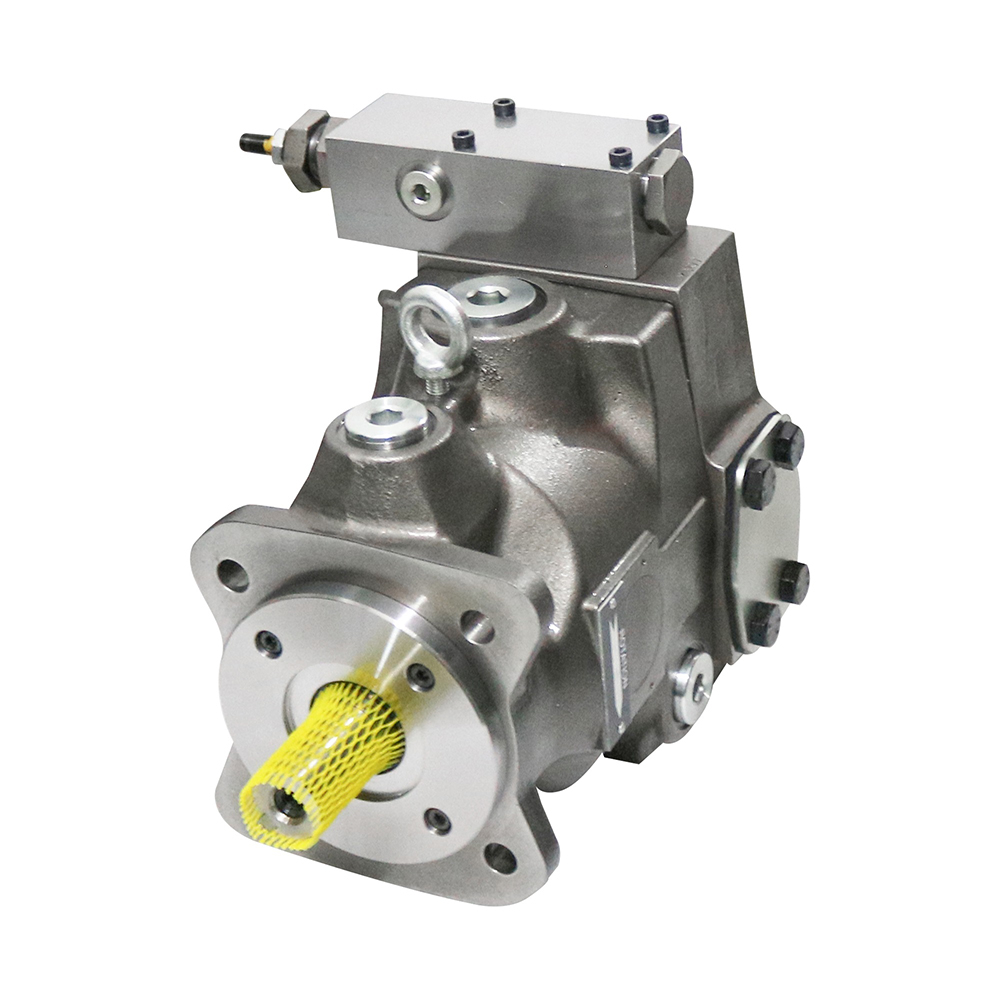

ATUS PV series swash plate variable axial piston pump is designed for open-circuit hydraulic systems. With compact structure and stable medium-pressure performance, it is widely adopted in mobile and industrial equipment. Multiple displacement versions are available as reliable replacement hydraulic components.
Technical Specifications:
-
Size NG: 16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 / 360
-
Displacement(cm³): 16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 / 360
-
Speed(rpm): 3000 / 2800 / 2500 / 2300 / 2400 / 2200 / 1800 / 1750
-
Flow(L/min): 48 / 60 / 69 / 84 / 90 / 112 / 129 / 176 / 200 / 212 / 336 / 396 / 486 / 630
-
N.W.(KG): 19 / 30 / 59 / 90 / 172 / 180
-
Rated Pressure: 350 bar
-
Reak Pressure: 420 bar
-
Application Field: Used in open hydraulic systems, mainly used in the steel industry, paper industry, construction machinery, etc
Features
-
Swash plate variable structure, stepless flow adjustment to match system power demand
-
Stable medium pressure rating, durable performance under continuous cyclic load
-
Multiple control selections: pressure compensation, remote pressure control and load sensing
-
Compact housing design, small footprint for limited installation space
-
Optimized valve plate friction pair, low noise and high volumetric efficiency
-
Good anti-pollution performance, suitable for ordinary harsh working environments
-
Optional through-shaft structure to realize multi-pump tandem combination
-
Modular control valve, easy disassembly, inspection and field maintenance
-
Wide compatible hydraulic fluid options, works with standard mineral hydraulic oil
-
Standard mounting and port connections, convenient equipment retrofit and replacement
Control Functions:
-
Fast pressure compensation (constant pressure) variable control
-
Pressure compensation (constant pressure) variable control with remote control
-
Load sensing and torque limiting (constant power) variable control
-
Constant power/torque variable control
Application Scope
Suitable for open-circuit hydraulic systems of construction machinery, agricultural equipment, material handling machines, small hydraulic stations and general industrial machinery.
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.
ATUS PV hydraulic pump supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
