Product Introduction

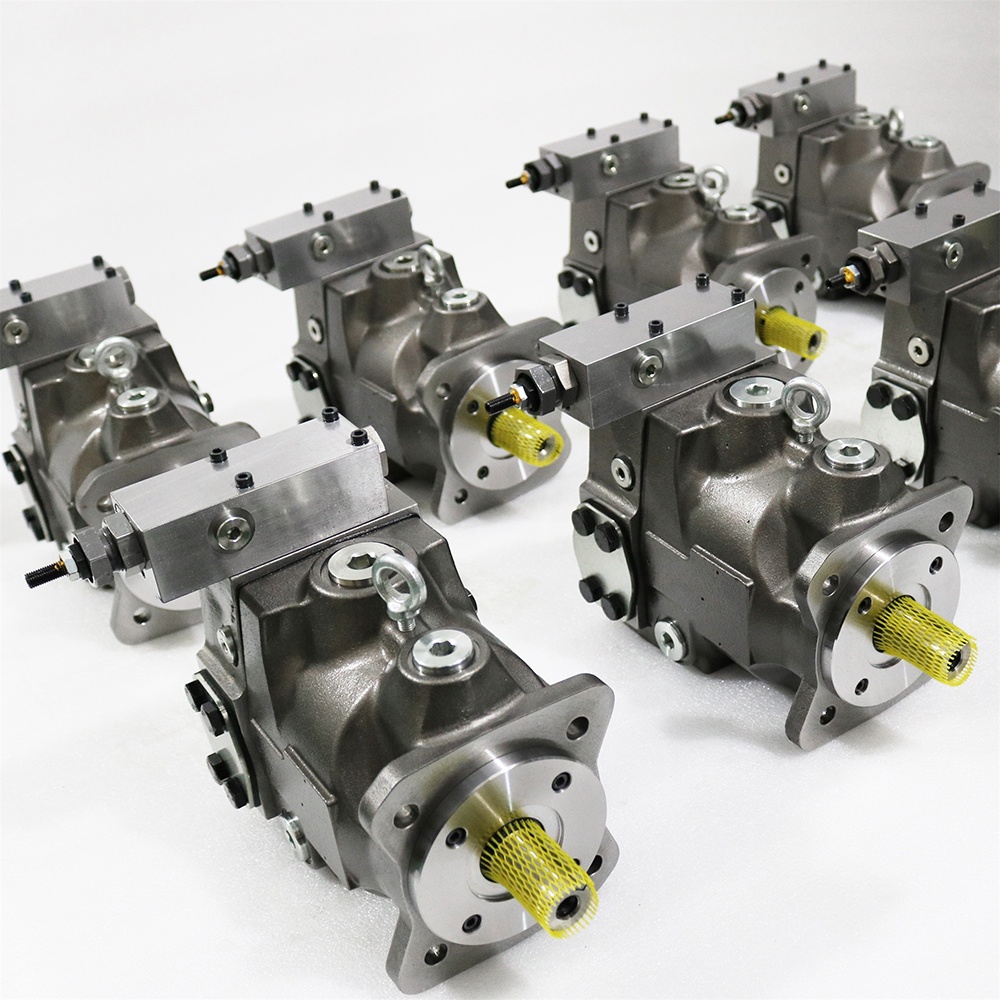

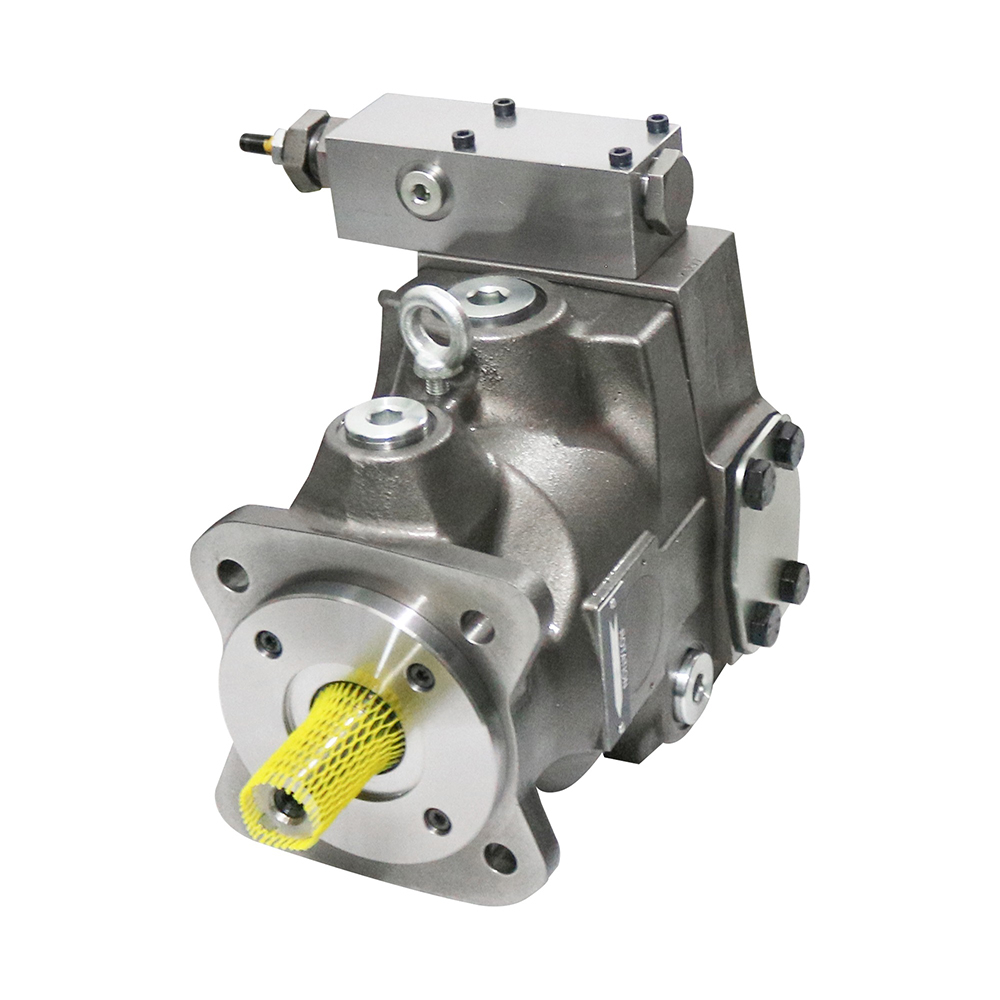

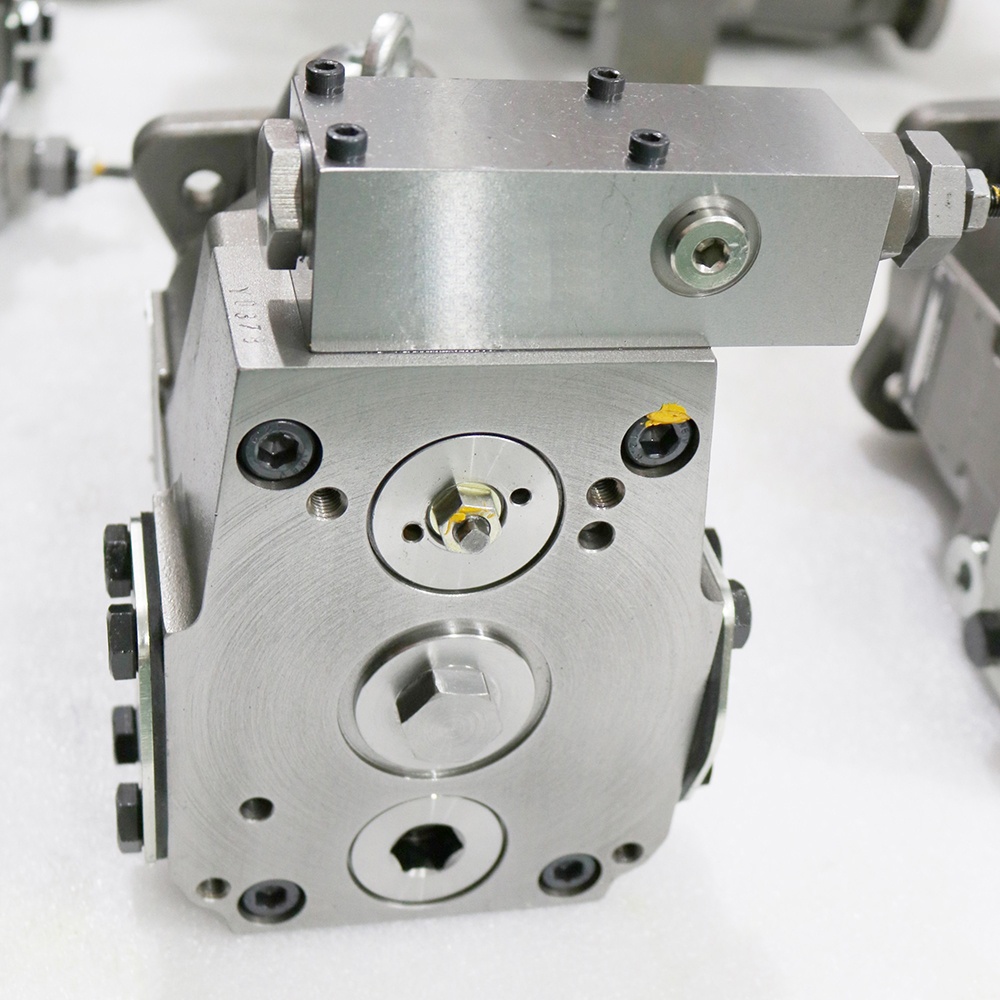

ATUS PV series variable displacement piston pump is engineered for medium to high pressure open circuit hydraulic systems. Compact structure and stable pressure output make it an ideal replacement hydraulic component for engineering machinery and industrial equipment. Multiple displacement options are available.
Technical Specifications:
Size NG: 16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 360
Displacement (cm³):16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 360
Speed (rpm): 3000 / 3000 / 3000 / 3000 / 2800 / 2800 / 2800 / 2800 / 2500 / 2300 / 2400 / 2200 / 1800 / 1750
Flow (L/min): 48 / 60 / 69 / 84 / 90 / 112 / 129 / 176 / 200 / 212 / 336 / 396 / 486 / 630
N.W. (KG): 19 / 19 / 19 / 19 / 30 / 30 / 30 / 59 / 59 / 59 / 90 / 90 / 172 / 180
Nominal Pressure: 350 bar
Peak Pressure: 420 ba
Circuit Type: Open and closed circuits
Application Field: Used in open hydraulic systems, mainly used in the steel industry, paper industry, construction machinery, etc
Features
High working pressure for heavy-duty operating conditions
Steady flow output with low pressure pulsation
Flexible displacement adjustment for energy saving
Robust cast iron housing for long service life
Multiple control modes optional
Low noise operation during continuous running
Easy installation and maintenance
Strong oil contamination resistance
Wide range of displacement selections
Cost-effective replacement solution
Control Methods:
Fast pressure compensation (constant pressure) variable control
Pressure compensation (constant pressure) variable control with remote control
Load sensing and torque limiting (constant power) variable control
Constant power/torque variable control
Advantages:
Low noise and smooth operation.
Fast response times with highly sensitive control adjustments.
High self-priming speed for superior performance.
Compact design ensuring a small installation footprint.
Robust through-shaft driven structure supporting 100% rated torque transmission.
Application Range
Machine tools
Plastic injection machinery
Construction equipment
Material handling machinery
General industrial hydraulic stations
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.
PV hydraulic pump supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
