Product Introduction

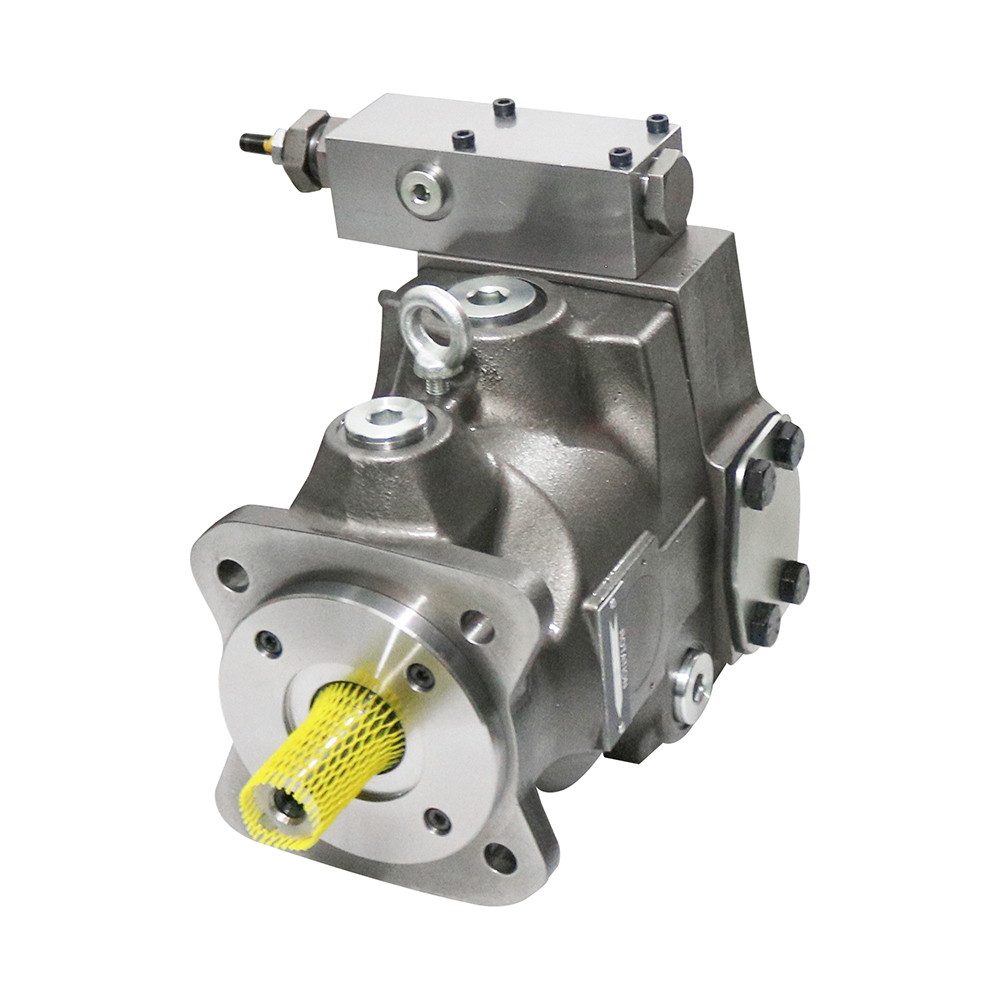

ATUS PV series fixed displacement piston pump is engineered for high-pressure open-circuit hydraulic systems. Robust structure and reliable performance make it an ideal replacement component for heavy machinery and construction equipment. Multiple displacement options available.
Technical Specifications:
Sizes (NG): 16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 / 360
Displacement (cm³): 16 / 20 / 23 / 28 / 32 / 40 / 46 / 63 / 80 / 92 / 140 / 180 / 270 / 360
Speed (rpm): 3000 / 3000 / 3000 / 3000 / 2800 / 2800 / 2800 / 2800 / 2500 / 2300 / 2400 / 2200/ 1800 / 1750
Flow (L/min): 48 / 60 / 69 / 84 / 90 / 112 / 129 / 176 / 200 / 212 / 336 / 396 / 486 / 630
N.W. (KG): 19 / 19 / 19 / 19 / 30 / 30 / 30 / 59 / 59 / 59 / 90 / 90 / 172 / 180
Rated Pressure: 350 bar
Reak Pressure: 420 bar
Control Types: Direct-acting design (Sizes 10 to 25) / Pilot-operated design (Sizes 40 to 150)
Application Field: Used in open hydraulic systems, mainly used in the steel industry, paper industry, construction machinery, etc
Features
High pressure rating for heavy load working conditions
Stable flow output, low pulsation
Heavy-duty bearing design for long service life
Compact structure, easy installation
Good contamination resistance
Wide viscosity range of applicable hydraulic oil
Low noise during continuous operation
Multiple mounting and shaft options
High mechanical & volumetric efficiency
Cost-effective replacement solution
Advantages:
Highly Efficient: Low power consumption even at zero stroke, optimizing energy savings.
Quiet Operation: Low operating noise levels, perfectly suited for modern industrial environments.
Fast Response: Short control response times for precise flow and pressure regulation.
Standard Compliance: Mounting and connection dimensions fully compliant with VDMA 24 560/1 and ISO 3019/2 standards.
Modular Design: Good stroke-venting characteristics and pump assembled for easy maintenance.
Application Range
Construction machinery
Mining equipment
Metallurgical machinery
Marine hydraulic system
Heavy industry presses
Material handling equipment
Notes & Service
Please confirm model, displacement, rotation direction and control type before placing orders.
ATUS PV hydraulic pump supports modular replacement and on-site maintenance.
We provide professional technical support and reliable after-sales service.
FAQ
Q1: How to verify more realistically that ATUS is a factory?
A1: 1)Welcome to visite ATUS workshop by online video Live.
2)Field visite to ATUS manufacturing workshop
Q2: What is the MOQ ?
A2: MOQ 1 PCS
Q3: Can I mark my own brand on the pump?
A3: Sure. Full order Can mark your brand and code
Q4: How long is your delivery time ?
A4: 1).ATUS warehouse stock 2-3 days. No stock 7-15 days
2).ATUS custom production 7-10 days.
3).Mass production: determined according to the quantity
Q5: What payment method is accepted ?
A5: TT,LC,Western union,Trade assurance,VISA
Q6: How to Place your order ?
A6: 1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7: What kind of inspection you can provide ?
A7: 1).ISO9000 quality system certification.
2).ATUS is tested from material procurement to finished product by different departments such as QA, QC, and sales representatives to ensure that all pumps are in perfect condition prior to shipment. We also accept inspection by a third party you specify.
